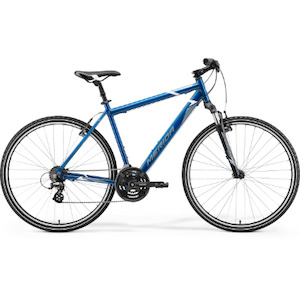

2021 Merida Crossway 10 - V

01. FRAME CROSSWAY DT, MAT aluminium, 700C WHS, 135x9 AST, BSA BBR 02. FORK Suntour NEX, Coil, 63mm suspension travel 03. BRAKE-FRONT Promax MTV-117A 04. BRAKE-REAR Promax MTV-117A 07. CHAIN KMC NS8 08. CRANK Shimano TY301, 48-38-28 teeth 09. CRANK LENGTH 170 mm-XXS/SM, 175 mm-ML/XXL 10. BOTTOM BRACKET FSA TH-7420ST-W, Cartridge Bearing 11. SHIFTER-FRONT Shimano ST-EF500 12. SHIFTER-REAR Shimano ST-EF500 13. DERAILLEUR-FRONT Shimano FD-TY510 14. DERAILLEUR-REAR Shimano RD-M310 15. CASSETTE Shimano MF-TZ500, 14-28 teeth, 7 speed 16. PEDALS VP VPE-891 17. GRIPS MERIDA EC 18. HANDLEBAR MERIDA CC, MAT steel, 620mm width, 30mm rise 19. STEM MERIDA TK, MAT aluminium, 25.4mm diameter, adjustable 20. STEM SIZE 100 mm all sizes 21. HEADSET FSA TH888 22. HUB-FRONT Joytech JY-751DSE, 100x9mm width front hub, 32 spoke holes 23. HUB-FRONT Joytech JY-752DSE, 135x9mm width rear hub, 32 spoke holes 25. RIMS MERIDA CC, 17mm inner width, MAT aluminium 26. SADDLE MERIDA Cross Sport 27. SEAT CLAMP MERIDA COMP QR 28. SEAT POST MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel 29. SPOKES Steel UCP 30. TYRE-FRONT MERIDA K1171, 700x40C, wire 31. TYRE-REAR MERIDA K1171, 700x40C, wire
