Stronghand 30/ 60/ 90Deg. Inside/Outside Magnet - Combo Pack | Magnetic Positioners

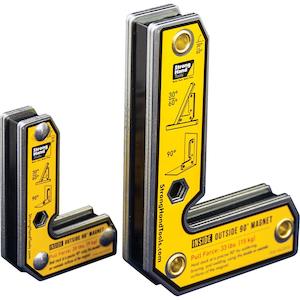

SHMLDT350 - Stronghand 30/ 60/ 90deg. Inside/Outside Magnet - Combo Pack Inside / Outside Angle Magnets Hold stock using the Inside or Outside edges! Hold stock from the outside leaving clearance for inside welds or hold stock from the inside for outside welds.

- Hold and position sheet metal round pipes square angled or flat stock.

- The Inside / Outside Angle Magnets are constructed from two independent rectangular magnets for consistent undiminished magnetic force when both sides are attached to workpieces.

- Use mounting holes to link two magnets together for use as fixturing elements.

- Use hex hole on magnet for breakaway leverage.

- Descrition: Fixed Angle. Combo Pack: include 1 x SHMLD300 1 x SHMLD500

- SHMLD300

- Angles: 90°(30° 60°)

- Height: 75.5mm

- Width: 52mm

- Thickness: 14mm

- Mag. Pull Force: 9kg

- SHMLD500

- Angles: 90°(30° 60°)

- Height: 125mm

- Width: 85mm

- Thickness: 18mm

- Mag. Pull Force: 15kg
