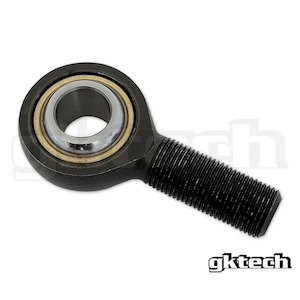

Gktech Replacement PCML12TS Bearing

Replacement PCML12TS bearing Used in the following GKTECH products: R32 front upper camber arms (SKU= R32X-FUCA) and Z32 front upper camber arms (SKU = Z32X-FUCA) PCML12TS IMPERIAL METRIC ROD END BALL BORE SIZE ROD END BALL BORE SIZE 0.7500 in 19.0500 mm ROD END BALL WIDTH ROD END BALL WIDTH 0.8750 in 22.2250 mm THREAD LENGTH THREAD LENGTH 1.7500 in 44.4500 mm THREAD SIZE THREAD SIZE 3/4 - 16 UNF LH 3/4 - 16 UNF LH ROD END HEAD DIAMETER ROD END HEAD DIAMETER 1.7500 in 44.4500 mm ROD END MISALIGNMENT ANGLE ROD END MISALIGNMENT ANGLE 24 degrees 24 degrees ROD END STATIC LOAD CAPACITY (lbs) ROD END STATIC LOAD CAPACITY (kg) 21,400 lbs 9,707 kg ROD END MATERIAL ROD END MATERIAL Chromoly Chromoly LUBRICATION LUBRICATION PTFE lined PTFE lined VEHICLE COMPATIBILITY NISSAN R32 SKYLINE GTR
R32 SKYLINE GTS-T
R33 SKYLINE GTR
R33 SKYLINE GTS-T
R34 SKYLINE GT-T
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
S14 200SX/SILVIA
S15 200SX/SILVIA
V35 SKYLINE
V36 SKYLINE
Z32 300ZX
Z33 350Z
Z34 370Z
