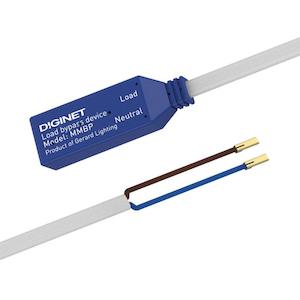

Load Bypass & Correction Device for Problematic LED and CFL Lamps Diginet - MMBP
Description:
The Diginet Load Bypass Device is designed to provide improved dimming and switching performance of some problematic LED and CFL lamps. The device can overcome the following issues which are occasionally seen when controlling some LED or CFL light sources via electronic dimmers, switches, timers or sensors. The Load Bypass Device is wired in parallel with the load and can be retrofitted to existing lighting installations
Features:
• Allows up to 4 Diginet LEDsmart devices to be added to a circuit without impacting load compatibility
• Supplied with pre-terminated leads
• Crimped terminations on lead for reliable connection to load
• Small and light-weight enabling easy retrofit and new installation
• Independent of maximum connected load
• Intrinsically thermally and electrically safe
Specification:
Hours (Avg): 50000
IP Rating: 20
Warranty: 2 years
Watts: 400w
Voltage: 240v
Operating Temperature: 0° to 50°C
IPART Approved: No
Dimension: 49mm x 15mm x 11mm
Weight: 25g
Order Code:
MMBP
All products are priced in New Zealand Dollars (NZD).
