RAM Marine Swingle - Swing Arm with Swivel Socket - C Series

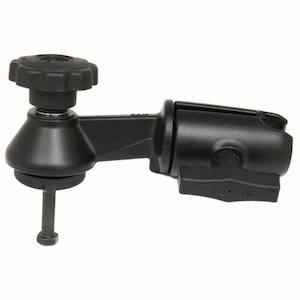

RAM-VB-110-5NBU RAM® 152mm / 6" Swingle Swing Arm with Swivel Socket

Features:

152 mm (6") Single Swing Arm with C Size Swivel Socket
Swivel socket will mate with C Series (1.5") Ball Bases
Swivel socket can rotate to achieve ideal viewing angle
Manufactured from Powder Coated Marine Grade Aluminium for longevity in all environments
Backed by lifetime guarantee

Connects to either the RAM-109V-BU Vertical or RAM-109H-BU horizontal mounting base.



Specs & Features

Round Plate Hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter


Length:
152.4mm (6 inches)


Material:
Powder Coated Marine Grade Aluminium

Socket Size:
1.5" C size ball


Hardware Included
(1) 3/8"-16 x 4" Hex Bolt
(1) 2" Rubber Washer
(1) 1.25" Fender Washer
(2) Steel Washers
(1) Thrust 6-Bearing Washer
(1) 3/8"-16 Knob


Weight
1.021 kg (2.25 lbs.)

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
