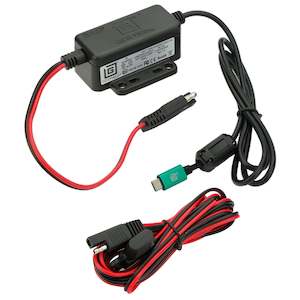

RAM GDS Modular 30-64V Power Delivery Hardwire Charger with Male USB Type-C

- Hardwire charger includes USB Type-C male connection with input of 30-64VDC and output of 5-15VDC
- Supports Power Delivery
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty

The GDS® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 15V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery. Always Protected. Always Connected.®

input voltage

30-64VDC output voltage

5-15VDC output current

3A max input connector

Bare Wire input cable length

2.5 Meters output connector

USB Type-C Male output cable length

1 Meter operating temperature

-20°C to 70°C storage temperature

-40°C to 85°C regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant certifications

CE Certification
RCM Certification
FCC Certification
UL 62368-1 Certificaton Warranty

3 year warranty Weight

0.47 lb
