RAM Wheelchair Base with Quick Release & Swivel Feature

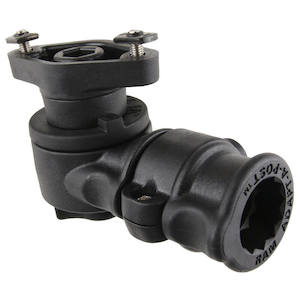

RAP-AAPR-WCT RAM® Universal Wheelchair Base with Quick Release & Swivel Feature
Features
Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests
Easy swivel and quick release capabilities without changing ball and socket positioning
Compact design keeps mount within armrest width
Durable components support any phone or tablet mount with a short or long extension
Backed by a lifetime warranty
The RAM® Universal Wheelchair Base is a feature-rich mounting platform supporting any phone, tablet or cup holder for any wheelchair armrest or seat track. With the turn of a single knob the user can swivel the entire mounting system in and out of position without having to adjust any other mounting components. A quick release button is integrated into the base which allows the user to easily remove or insert the mount from the chair; also a great option for swapping out one device mount for another. The compact design of the RAM® Universal Wheelchair base keeps the mounting system within the chair's armrest width, offering peace of mind when navigating through tight spaces and doorways. All RAM® mounting compontents are backed by a lifetime warranty.
Hardware Included
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 7/16" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(2) #8 Washers
T-Bolt Dimensions
Large: 12.2mm x 24.1mm (.48" x.95")
Small: 9.53mm x 15.06mm (.375" x.593")
Hole Pattern
2-Hole AMPS: 48.5mm (1.912")
Materials
High strength composite
Weight
186mm (0.41 lbs.)
YouTube:
https://www.youtube.com/watch?v=GqwO7cziwV4
https://www.youtube.com/watch?v=vIJ6n79oF5A
