RAM Tough-Claw Base (medium) & Medium Arm - B Series
RAP-B-404-201U RAM® Tough-Claw™ Medium Clamp Base with Double Socket Arm
Features
Medium version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 25-41mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface
Includes B size medium length RAM® double socket arms
Made of Marine-grade aluminium, high-strength composite and stainless-steel hardware for durability and reliability in the most demanding environments
Backed by a lifetime warranty

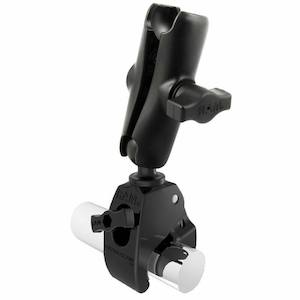

This mounting system consists of the medium Tough-Claw™ base and a double socket arm.
The RAM Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 25-41mm outer diameter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
Clamping Range
Rails/Tubes:
25.4 to 40.6mm (1" to 1.6")
Flat Surfaces:
0 to 40.6mm (0" to 1.6")
Arm Dimensions:
Overall Length: 94.7mm (3.73")
Socket-To-Socket Length: 76.2mm (3.0")
Material:
Marine-grade aluminium
High strength composite
Weight Capacity
Standard Use: 907 grams (2 lbs)
Heavy-Duty Use: 454 grams (1 lb)
Ball Size:
25.4mm/1" Rubber Ball "B" Size
Components
RAP-B-404U MED TOUGH-CLAW W 1" DIA BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
YouTube:
https://youtu.be/iO9NEqm9MJk
https://www.youtube.com/watch?v=rX36fAdknUY
