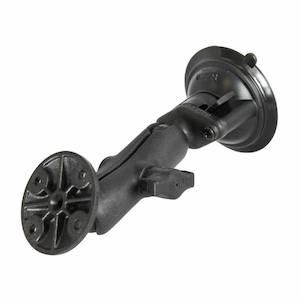

RAM Suction Cup Base - with Round Base and Medium Arm - (B Series Composite)
RAP-B-166-202U Twist Lock Suction Cup with Double Socket Arm and Round Base Adapter - Composite
Features
RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
Includes B size medium length RAM® double socket arm and 2.5" round base with B size 1" rubber ball
RAM ball and socket technology allows for near-infinite adjustability
Made of high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty
This mounting system consists of an 84mm (3.3") diameter suction cup twist lock base, STANDARD (94mm) length double socket arm and round base adapter that contains the universal AMPs hole pattern. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive discs. The hole pattern found on the round base adapter will connect to most RAM cradles and 3rd party cradles.
The round base consists of a 1" diameter rubber ball connected to a flat 63mm (2.5 inch) diameter base. This mount has pre-drilled holes, including the universal AMPs hole pattern.
Arm Dimensions:
Overall Length:
94.7mm (3.73")
Socket-To-Socket Length:
76.2mm (3.0")
Hole Pattern:
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
Material:
High strength composite
Ball Size:
1" Rubber Ball "B" Size
Note:
This mount does not require any drilling for installation.
Weight:
236 grams (0.52 lbs.)
Weight Capacity:
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:
RAP-B-224-1U - Suction cup with 1" ball
RAP-B-201U - Standard double socket arm
RAP-B-202U - 63mm round base with 1" ball
