RAM Rectangular Base - B Series - 38 x 89mm 4 hole pattern

RAM-B-202U-24 RAM® Ball Base with 1.5" x 3.5" 4-Hole Pattern

Features

Rectangular plate features a 4-hole pattern of 38.1mm x 88.9mm (1.5" x 3.5")
Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm
RAM ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

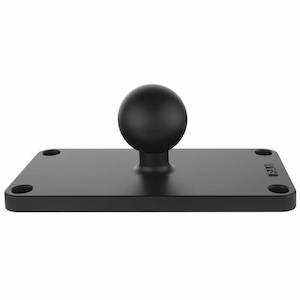

The RAM-B-202U-24 contains a 1" diameter rubber ball connected to a rectangular plate with a 4-hole pattern of 38.1mm x 88.9mm (1.5" x 3.5") centre to centre.


This base is part of the RAM mounting system and is used with a RAM arm and device cradle.


Perfect for mounting cup holders, fishfinders and more.


Hole Pattern
38.1mm x 88.9mm (1.5" x 3.5") 4-hole pattern


Material:
Powder Coated Marine Grade Aluminium


Ball Size:
1" Rubber Ball "B" Size


Weight:
109 grams (0.24 lbs)


Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
