RAM Square 100mm VESA Base Plate - E Size 3.38" Ball - reinforced

RAM-E-246U-IN1 RAM® Steel Reinforced 100x100mm VESA Plate with Ball


Features

Square plate features the VESA hole pattern for connection to a wide variety of devices
Includes a steel screw that is included in the structure of the VESA plate, enhancing structural integrity
Included E size 3.35" RAM® rubber ball allows for connection to any E size RAM® double socket arm
RAM ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

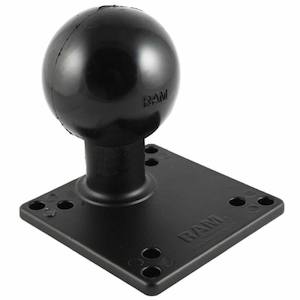

The RAM-E-246U-IN1 consists of a 3.38" rubber ball, connected to a 4.75" square plate with 4x100mm holes and 4x75mm holes in each corner. This product is a steel reinforced VESA plate due to a steel screw that is included in the structure of the VESA plate, enhancing structural integrity of the component. This additional screw is the reason why the RAM-E-246U-IN1 is slightly heavier than the RAM-E-246U.

Specs & Features

Hole pattern:
See Drawing
4x100mm
4x75mm

Material:
Powder Coated Marine Grade Aluminium
Steel reinforced

Ball Size:
85.5mm Rubber Ball "E" Size


Weight:
921 grams (2.03 lbs.)

Weight Capacity
Standard Use:
6.8 kg (15 lbs)
Heavy-Duty Use:
4.53 kg (10 lbs)
