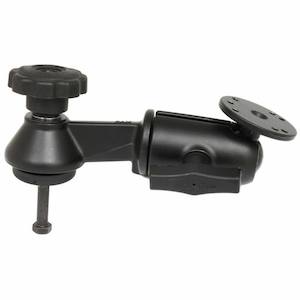

RAM Marine Swingle Swing Arm with Round Plate - C Series

RAM-VB-110-5U RAM® 152mm / 6" Swingle Swing Arm with Round Plate

Features:

Round hole pattern has 4 hole AMPs 3 hole 120 degree hole patterns
152 mm (6") Single Swing Arm with C Size Swivel Socket
Swivel socket will mate with C Series (1.5") Ball Bases
Swivel socket can rotate to achieve ideal viewing angle
Manufactured from Powder Coated Marine Grade Aluminium for longevity in all environments
Backed by lifetime guarantee


Powder coated marine grade alloy & stainless steel construction.


Hardware Included
(1) 3/8"-16 x 4" Hex Bolt
(1) 2" Rubber Washer
(1) 1.25" Fender Washer
(2) Steel Washers
(1) Thrust 6-Bearing Washer
(1) 3/8"-16 Knob

Product Dimensions
Swing Arm Length: 152mm (6")

Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812" (46.0mm)


Plate Size
2.5" Diameter

Ball/Socket Size
C Size (1.5")

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)


Materials
Marine-grade aluminium
stainless steel

Weight
680 grams (1.5 lbs.)


Components:

RAM-VB-110-5NBU 6" SWING ARM
RAM-202U ROUND BASE.
