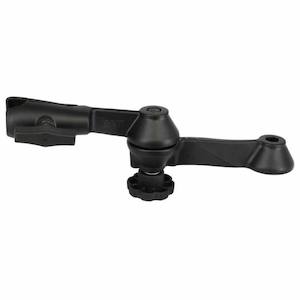

RAM Marine Swing Arm - Double Extension with Socket - 305mm length

RAM-VB-109-4U RAM® 305mm / 12" Double Swing Arm with Socket

Features

Dual articulating swing arms allows for ideal device placement
C Series socket will connect to a variety of RAM® C series plates
Made of powder-coated, marine-grade aluminium
Backed by a lifetime warranty


The RAM-VB-109-4U consists of two 152.4mm / 6" long single swing arms, Tele-Pole™ connection hole and single socket that will accommodate 1.5" ball bases. The two swing arms connect with a bolt and knob system. With a simple turn of the knob you can pivot the swing arms at this center point and the tighten the knob to lock the arms in place.

Note: This will mate directly to the RAM-109V-BU RAM® Vertical Swing Arm Base

Product Dimensions
Swing Arm Length: 305mm (12")

Ball/Socket Size
C Size (1.5")

Materials
Marine-grade aluminium

Weight
848 grams (1.87 lbs.)


Weight Capacity:
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)


Components:
RAM-VB-109-2U RAM 6" Swing Arm Extension
RAM-VB-109-3U RAM 6" Swing Arm Extension
