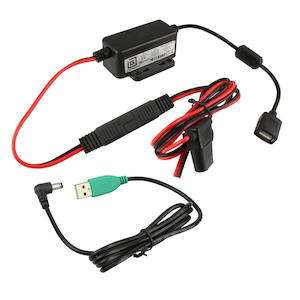

RAM GDS Modular Hardwire Charger with 90-Degree DC Cable

RAM-GDS-CHARGE-M55-V8BU RAM GDS® Modular 30V - 64V Hardwire Charger with 90-Degree DC Cable


Features

Hardwire charger includes USB Type-A female connector
Includes 90-Degree DC Cable
When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
Backed by a 3-year warranty




The GDS® Modular Hardwire Charger with DC cable is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components.

Compatible Devices:
Any 5V device with a current requirement of 2.5A or less

Input Voltage
30V - 64V DC

Output Voltage
5-9VDC

Output Current
2.5A max

Input Connector
90° DC Plug

Input Cable Length
1.2 Meters including 2 Pole Flat Marine Connector

Output Cable Length
0.2 Meter

Operating Temperature
-10°C to 70°C

Storage Temperature
-40°C to 70°C

Compliance
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

Certifications
CE Certification
e-Mark Certification
RCM Certification
FCC Certification


Additional Information
5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

Weight
177 grams (0.39 lbs.)

Warranty Status
3 year warranty
