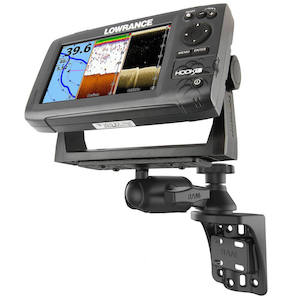

RAM Marine Swing Arm Vertical Mount with Swivel Ball & Socket Joint

RAM-109VSB RAM® Vertical 6" Swing Arm Mount with Round Ball Adaptor


Features

Universal marine electronic plate includes a variety of pre-drilled holes that match a wide range of devices
C size 1.5" RAM® swing arm and vertical base allow horizontal movement
Swivel socket can rotate to achieve ideal viewing angle
RAM® ball and socket technology allows for adjustability of viewing angle
Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty



This kit includes a vertical base, single swing arm and marine electronics mounting plate.

An ideal solution for your marine devices - fish-finders / chart-plotters this combines a vertical mount which allow the device to rotate in a horizontal place with a swivel ball and socket allowing the device to tilt as required.

The included rectangular plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Compatible Devices Include:

Garmin

ECHOMAP Plus 72cv
ECHOMAP Plus 73cv
ECHOMAP Plus 74cv
ECHOMAP Plus 75cv
ECHOMAP Plus 77cv
GPSMAP 722
GPSMAP 722xs
GPSMAP 742
GPSMAP 742xs
Striker Plus 5cv
Striker Plus 7cv
Striker Plus 7sv
Fishfinders and GPS Chartplotters

Lowrance

HDS Carbon 7
HDS LIVE 7
Fishfinders and GPS Chartplotters

Humminbird

Fishfinders and GPS Chartplotters

Raymarine

Fishfinders and GPS Chartplotters


Hole Pattern
See Drawing


Material:
Powder Coated Marine Grade Aluminium

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)

Weight
1.229kg (2.71 lbs)


Components:
RAM-109V-BU RAM® Vertical Swing Arm Base
RAM-111BU RAM 158 x 50mm Universal Electronics Base with 1.5" Ball
RAM-VB-110-5NBU RAM 6" Swingle Swing Arm with Swivel Socket
