RAM Marine Electronic Base - Humminbird / Eagle / Lowrance - "LIGHT USE"

RAM-B-107-1BU RAM® Ball Adapter for Humminbird Piranha More


Features

Adaptor for lighter Eagle, Humminbird and Raymarine devices
1" Ball will mate to any RAM B series arm
Manufactured from Powder Coated Marine Grade Aluminium for longevity and strength

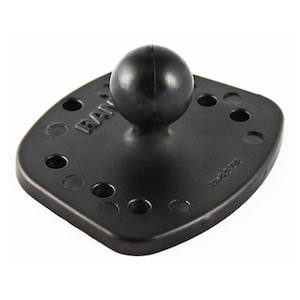

The RAM-B-107-1BU is a marine grade aluminium base with 1" rubber ball. The base connects to the underside of Humminbird, Eagle and Lowrance marine GPS devices.


COMPATIBLE DEVICES

Eagle
Cuda 240i
Cuda 240
Cuda 168
Cuda 128
FishEasy 320C
FishEasy 240

Humminbird
Piranha MAX 20
Piranha MAX 15
Piranha MAX 10

Lowrance
X-4
X-4 Pro

HOLE PATTERN
See Drawing

PLATE SIZE
83.6mm x 72.4mm (3.29" x 2.85")

BALL/SOCKET SIZE
B Size (1")

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)


MATERIALS
Marine-grade aluminium


WEIGHT
100 GRAMS (0.22 lbs.)
