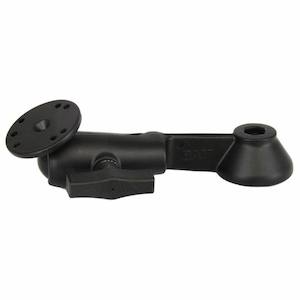

RAM Marine Swing Arm with Round base - 152mm Arm with Socket
RAM-VB-109-5U RAM® 6" Single Swing Arm with Socket & Ball
Features
152mm (6") swing arm extension with socket and round plate with 4 and 3 hole AMPs patterns
C Series 1.5" ball and socket supports devices up to 1.814kg (4 lbs)
Made of powder-coated, marine-grade aluminium
Backed by a lifetime warranty
The RAM-VB-109-5U consists of a 152mm (6") long single swing arm and 2.5" round base that contains the universal AMPs hole pattern.
Hardware Included
(1) 3/8"-16 x 4" Hex Bolt
(1) 2" Rubber Washer
(1) 1.25" Fender Washer
(2) Steel Washers
(1) Thrust 6-Bearing Washer
(1) 3/8"-16 Knob
Product Dimensions
Swing Arm Length:
152mm (6")
Hole Patterns:
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812" (46.0mm)
Plate Size
63.5mm (2.5") Diameter
Ball/Socket Size
C Size (1.5")
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Materials
Marine-grade aluminium
YouTube:
https://www.youtube.com/watch?v=5qnQfi-mj5E
