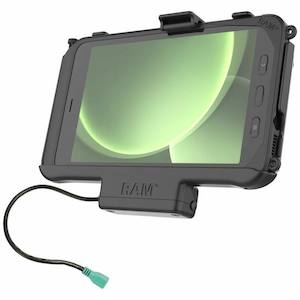

RAM EZ-Roll'r Powered Cradle for Samsung Galaxy Tab Active 5, 3 and 2

RAM-HOL-SAM60PU RAM® EZ-Roll'r™ Powered Cradle for Samsung Galaxy Tab Active 5, 3 and 2


Features

RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active 5, 3 and 2 through integrated pogo pin connector and mUSB cable
Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
Backed by a 3-year warranty



This powered cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins. You can easily rotate the device for use in portrait or landscape mode. This cradle is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked.


Look to the RAM-GDS-CHARGE-V7B1U hardwire charger or the RAM-GDS-CHARGE-USB2QCCIG cigarette vehicle charger for supplying power.


Compatible Devices

Samsung

Tab Active 5
Tab Active3
Tab Active2


Hardware Included
Machine Screws, Nylock Nuts, GDS® Genuine USB 2.0 Straight Cable, Cable Clamp Housing, Large / Small Cable Ties

Product Dimensions
W: 235mm (9.25")
H: 162mm (6.375")
D: 51mm (2")

Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)

Materials
High strength composite

Weight
318 grams

Input Cable Length: 214mm
Extension Cable Length: 750mm


Additional Information

This product will not support IntelliSkin®.
Mount uses a round ball base (RAM-202U recommended)
Device speakers and mics / Device headphone jack exposed
Zip tie locations for cable retention
Includes mUSB male to Type-A male extension cable and cable clamp with zip ties
mUSB female pigtail for power
