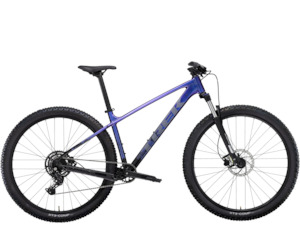

TREK - 2025 Marlin 5 Gen 3

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike. Frame Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew Fork SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100 mm QR, 100 mm travel Max compatible fork travel 120mm, XXS: 80mm Hub front Formula DC-20, alloy, 6-bolt, 5x100 mm QR Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR Skewer rear 173x5 mm QR Rim Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve Spokes 14 g stainless steel, black Tyres Bontrager XT3 Comp, wire bead, 30 tpi Max tyre size Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer Shifter Shimano U4000, 9-speed Rear derailleur Shimano CUES U4000 Crank Prowheel C10Y-NW, 30T steel narrow-wide ring Bottom bracket VP BC73, 73 mm, threaded cartridge Cassette Shimano LINKGLIDE LG300, 11-46, 9-speed Chain Shimano LG500 Pedal VP-536 nylon platform Max. chainring size 1x: 34T, 2x: 36/22 Seatpost Bontrager alloy, 31.6 mm, 12 mm offset Handlebar Bontrager alloy, 31.8 mm Grips Bontrager XR Trail Comp, nylon lock-on Stem Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree Head set Semi-integrated, 1-1/8" Brake rotor Tektro, 6-bolt, 160mm Brake Set Tektro HD-M275 hydraulic disc Rotor size Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer Weight M - 15.10 kg / 33.29 lbs (with tubes) Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
