Digital Refrigerant Scale & Intelligent Valve with Bluetooth®-Testo 560i Kit

All prices are exclusive of GST

Part No. 0564 2560

Testo 560i kit for automatic charging of refrigeration systems and heat pumps.

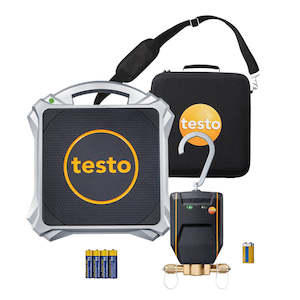

- In the kit: digital refrigerant scale Testo 560i and intelligent valve (both with Bluetooth), shoulder bag, batteries
- Automatic and precise refrigerant charging with the aid of refrigerant scale, intelligent valve as well as Testo manifold and/or Testo Smart App
- Easy operation via Testo manifold or testo Smart App with automatic charging programs according to target value superheat, subcooling or refrigerant weight
- Flexible in confined environments: Scale and valve automatically connect via Bluetooth to the manifold and App on your smartphone/tablet
- All measured values for the charging process at a glance in the manifold and App with storage of the measured data in the App
- Compatible with digital manifolds Testo 557s/550s/550i and the predecessor models Testo 557/550, as well as the Testo 115i , 549i , and 605i Smart Probes, Testo Smart App for Android and iOS.

Delivery Scope

- Testo 560i digital refrigerant scale with Bluetooth
- Refrigerant valve with Bluetooth
- Shoulder bag
- 4 x batteries (AA), 1 x 9 V (6LR61) battery
- Instruction manual Details

Advantages of the Testo 560i Refrigerant Scale

- High measurement accuracy with resolution 10 g and output in kg.
- Maximum load of 100 kg for all common refrigerant containers.
- High Bluetooth range of up to 150 m together with a Testo manifold (alone up to 30 m).
- Safe handling: 3D corners for accurate positioning of the refrigerant container and textured rubber surface for stable grip.
- High robustness due to dust and splash water protection (IP44).
- Especially handy thanks to compact housing, low weight, practical carrying handle and sturdy shoulder bag.
- Long battery life of up to 70 hours thanks to replaceable AA batteries and auto power-off function.
- High flexibility in outdoor use at temperatures from -10 to 50° C.

Advantages of the Refrigerant Valve

- Especially robust thanks to IP54.
- High Bluetooth range of up to 150 m together with a Testo manifold (alone up to 50 m).
- Long battery life of over 60 hours and replaceable 9 V block battery.
- Very practical due to sturdy hook. Technical Data

Refrigerant Scale Technical Data

Operating humidity 0 to 80 %RH
Weight 4.36 kg (incl. batteries and bag)
Measuring range 0 to 100 kg

Accuracy
Operating temperature 22 °C:
≤ ±(10 g 0.03 %rdg) (0 to 30 kg)
≤ ±(10 g 0.05 %rdg) (30 to 100 kg)

Resolution 0.01 kg
Dimensions 310 x 287 x 58 mm (LxWxH)
Operating temperature -10 to 50 °C
Protection class IP44
Battery type 4 x type AA batteries
Battery life >70 h at 25 °C
Interface Bluetooth® 4.2
Radio range 30 m
Storage temperature -10 to 50 °C

Refrigerant Valve Technical Data

Operating humidity 0 to 80 %RH
Weight 570 g (incl. batteries)
Dimensions 95 x 119 x 47 mm (LxWxH)
Operating temperature -10 to 50 °C
Protection class IP54
Product colour black/orange; silver
Maximum working pressure 35 bar
Battery type 9 V (6LR61)
Battery life >60 hrs 3000 valve operations
Interface Bluetooth® 4.2
Radio range 50 m
Storage temperature -10 to 50 °C
Downloads

Brochures

- Data sheet Testo 560i (application/pdf)

Manuals

- I nstruction manual Testo 560i Scale & Testo Smart Valve (application/pdf)
- Short manual Testo 560i (application/pdf, 1.864 KB)
- Short manual Testo Smart Valve (application/pdf
