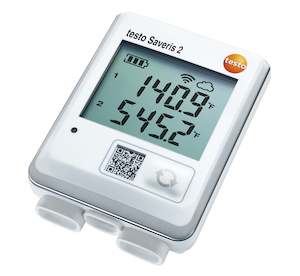

Wi-Fi Temperature Logger with 2 Inputs - Saveris 2-T3

All prices are exclusive of GST

Part No. 0572 2033

- Offers two connections for external TC temperature probes (Types K, T, J)
- Broad measuring range of -195 to 1350 °C possible thanks to connectable probes (sold separately)
- WiFI data logger system with easy installation and operation
- Call up measurement data at any time via Smartphone, tablet or PC
- Limit value violation alarms by e-mail or (optionally) SMS
- External probes required. Sold separately

Please visit our probes section HERE , or give us a call to discuss which probe is suitable for your application.

The WiFi data logger Testo Saveris 2-T3 allows you to monitor the temperatures in processes or in refrigerated and work- or storerooms. The temperature values measured with the connectable thermocouple probes (TC) are reliably recorded over long periods, and transmitted directly to the Testo Cloud (online data storage) via your WiFi. You can access these readings at any time, anywhere, using your internet-enabled smartphone, tablet or PC.

Delivery Scope

- WiFi data logger Testo Saveris 2-T3
- Including free Cloud access
- Micro-USB cable
- Wall bracket with lock
- Batteries (4 x AA AlMn batteries)
- Quick Start Guide
- Connectable thermocouple (TC) probes (probes not included - please visit out probes section HERE) Details
The WiFi data logger system Testo Saveris 2 is the easy, versatile and secure solution for the measurement and monitoring of temperature values in processes or in your refrigerated and work- or storerooms. The system consists of at least one WiFi data logger and a free Cloud access (online data store). As a component of this data logger system, the data logger testo Saveris 2-T3 with up to 2 connectable thermocouple temperature probes (TC Types K, T, J), stores all measured temperature values and transmits them directly via your wireless LAN to the Testo Cloud. A broad measuring range of -200 to 1350 °C is possible thanks to the connectable TC probes (Types K, T, J). You can use the alarm function to receive immediate alarms by e-mail or SMS (optional), when limit values are violated.

Installation, readout and analysis of WiFi data loggers
The WiFi data logger testo Saveris 2-T3 can be easily installed without previous technical skills (no software installation necessary). For the commissioning as well as the evaluation and analysis of the measurement data, the free Cloud "Basic" is available to you (register at www.saveris.net). You can access all measurement values and analysis functions anywhere and at any time with an internet-capable Smartphone, tablet or PC. Thanks to access to an API interface, you can export the measurement data to your system.

The current measurement values, limit value violations and the remaining battery life are visible in the data logger's display. The standard batteries (AA) have a lifetime of 24 months, and can be exchanged at any time by the user. The internal data store of the WiFi data logger has a capacity of 2 x 10000 measurement values, and the housing is protected according to IP54.

Note:
In order to use the WiFi data logger Testo Saveris 2-T3, you additionally require at least one connectable thermocouple probe (optional).

Technical Data

Temperature - TC Type K (NiCr-Ni)
Measuring range -195 to 1350 °C
Accuracy ±(0.5 0.5 % of mv) °C
Resolution 0.1 °C

Temperature - TC Type T (Cu-CuNi)
Measuring range -200 to 400 °C
Accuracy ±(0.5 0.5 % of mv) °C
Resolution 0.1 °C

Temperature - TC Type J (Fe-CuNi)
Measuring range -100 to 750 °C
Accuracy ±(0.5 0.5 % of mv) °C
Resolution 0.1 °C

General technical data
Dimensions 95 x 75 x 30.5 mm
Operating temperature -30 to 50 °C
Protection class IP54
Door contact -
Communication rate Basic: 15 min (fixed) / Advanced: 1 min. to 24 h (flexible)
Measuring rate Basic: 15 min (fixed) / Advanced: 1 min. to 24 h (flexible)
Connection external External temperature probes
Power supply 4 x AA AlMn batteries; mains unit optional; for temperatures below -10 °C please use Energizer batteries 0515 0572
Memory 10,000 measurement values / channel
Battery life 24 months at 25 °C and 15 mins measurement and communication interval at -30 °C and 15 mins measurement and communication interval with Energizer batteries 0515 0572
Storage temperature -40 to 70 °C
Weight 240 g Accessories
