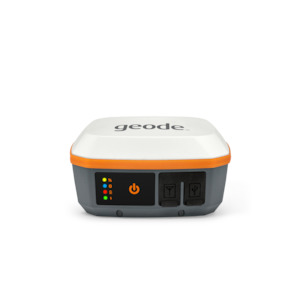

Juniper Geode GNS3S Reciever

With Geode GNSS Receivers, users can easily collect real-time GNSS data with sub- meter, sub-foot, and decimeter accuracy options. Here's your answer to GNSS data without the huge price tag or complexity of other precision receivers.

- Scalable accuracy
- All-day battery life
- Simple compact design
- Affordable price points
- Juniper Rugged™ FEATURES

- Scalable Accuracy

The Geode GNS3 provides sub-meter, sub-foot, and decimeter accuracy options.
- Open Interface (BYOD)

Use Geode with any of Juniper Systems' handhelds or with your own iPhone™, iPad™, Windows®, or Android™ device.
- All-day Battery Life

The Overtime Technology battery provides enough power for long workdays, while conserving power in extreme temperatures.
- Simple to Use

It's "one button simple" design provides intuitive and easy operation.
- Compact Size

Small and lightweight, the Geode is easy to pack around all day.
- All-In-One Design

The inside of the Geode contains the receiver, antenna, and battery, making it easy to carry around and mount without a mess of wires.
- Affordable Price Points

Professional accuracy at a price you can afford. Reach out to us here for a quote.
- Juniper Rugged™

Designed to withstand harsh environments for consistently reliable performance. GNS3 SPECIFICATIONS

RECEIVER

- Receiver Type : GNSS multi-frequency,
multi-constellation
- Signals: GPS: L1CA, L1P, L1C, L2P, L12P, L2C, L5,
GLONASS: G1, G2, BeiDou: B1, B2, B3
(Without L5), GALILEO: E1BC, E5a, E5b and
QZSS: L1CAm L1C, L2C, L5
- Channels: 800
- SBAS Support: 3-channel parallel tracking
- L Band: Atlas worldwide 1525-1560 Mhz
(with subscription)
- Update Rate: 1 Hz standard, up to 10Hz and 20 Hz options

ACCURACY

- SBAS
