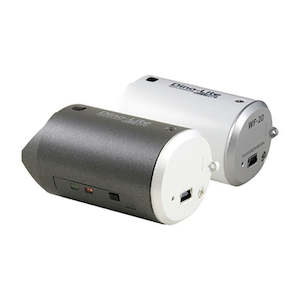

Dino-Lite WF-20 WiFi Streamer

Coupling with Dino-Lite AF series, the WF-20 is a Wi-Fi streamer adding further versatility, flexibility, and agility to Dino-Lite microscope. Thanks to stable image transmission and long battery life, the WF-20 is well suited but not limited to field applications. The WF-20 can also be configured as a wireless router for staying connected with internet or a network during usage.
Overview

Stable and reliable transmission

Streaming live image as crisp and fluent as if wired, the WF-20 is an ideal companion for wireless microscopy observation.

Note: The fluency could be affected when the Wi-Fi channel is overcrowded.

Wireless network connectivity

Stay connected while using wireless microscope. The WF-20 can easily be configured as a router to connect your mobile device with a Wi-Fi access point.

Long battery life

The battery life was not comprised despite WF-20’s small size design. The WF-20 provides more than 2.5 hours of continuous usage with single charge.

Adaptable design

Compatible with every AF-series model, the WF-20 meets the professional need of using with various Dino-Lite microscopes.

Specification

Support protocol

Wi-Fi IEEE802.11b / g / n

Frequency

2.412GHz~2.485GHz

Battery continuous operation time

2.5 hours (tested by using with AF4915)

Operation temperature

10~45°C (50~113°F)

Unit dimension

58mm x 36.5mm x 32mm

Unit weight

approx. 57g
