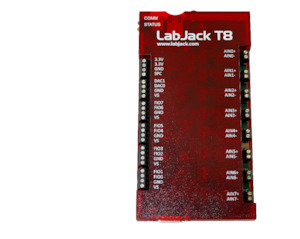

LabJack T8

The the new flagship T-Series device adding powerful features including:

- 8x isolated analog inputs (AIN) with simultaneous sampling.
- ±1 kV AIN isolation channel-to-channel and channel-to-ground.
- Top performance for thermocouples, load cells, bridge circuits, and more.
- 8x 24-bit ΣΔ ADCs (up to 40k samples/s/ch).
- 10 AIN voltage ranges: ±11V, to ±0.18V.
- 2 analog outputs (16-bit, 0-10V) with 20 mA drive.
- 20 digital I/O similar to the T7.
- Lua scripts are faster with 5x the code space than the T7.
- 3.3V fixed voltage outputs for excitation.
- Supported by LJM. LabJack's free, 3rd generation, cross-platform driver/library/API for simplifying device communication.
- Industrial temperature range (-40 to 85C).
- USB & Ethernet.
- Built-in Power over Ethernet (PoE), or power through USB connection.

Datasheet
