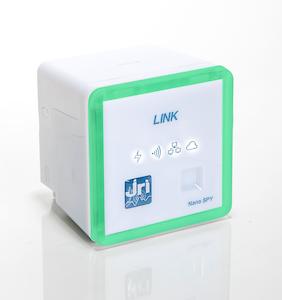

NanoSpy Link

The Nano SPY LINK module collects the data measured by all nearby Nano SPY sensors. Data are transmitted to the My Sirius secure Cloud via a WiFi, Ethernet network or 3G/4G cellular network.

My Sirius account required. Select here to purchase My Sirius annual subscription. Interface LED and status warning lights, touch-sensitive button On/Off, buzzer Transmission Frequency with Nano SPY 2,4 GHz Frequency - Modulation 802.11b and 802.11g Maximum radiated power Radio : 10 dBm (10 mW) / WiFi : 12 dBm Radio transmission Up to 40 m line of sight Power supply Either PoE 3m Ethernet cable (supplied) or regulated power supply 230 V CA – Output : 5 V CC - 1A 3m USB cable (supplied) Power consumption Average consumption : 0.5 W (WiFi) / 0.85W (Ethernet) Peak consumption : 2 W Battery life Full operation battery life : 6hrs in WiFi / 4hrs in Ethernet Charge time : 125hrs Backup battery type NIMH / Capacity : 730 mAh Dimensions and weight 78x78x63 mm - 200g (without adaptor) Protection IP20 – Indoor only Operating conditions 0°C to 40°C – 0 to 90% RH Compliance CE, EN 301 489 / EN 300 220 / EN 61010 / EN 301 511 Supplied with Power cable (depending on the device)

Download Product Sheet PDF
