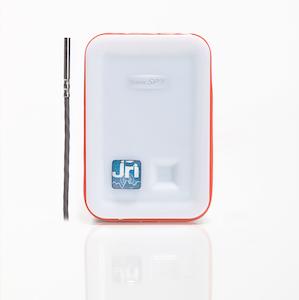

Nano SPY T3 Recorder

The Nano SPY T3 external sensor measures, records temperature and transmits its data to a nearby Nano SPY Link module via 2.4 GHz radio frequency communication. The data is automatically sent to the JRI secure Cloud for hosting, and will be managed on the JRI MySirius web application. If thresholds are exceeded, alerts are transmitted in real time via alarm SMS/Text and email. The Nano SPY will also flash red when in alarm as well at the Nano SPY Link module. This model comes in low and high temperature versions.

NOTE: To operate the device requires connection to Nano SPY LINK and My Sirius subscription. Interface Status LED lights and On/Off touch sensitive button Measurement range Low -200°C to 0°C Measurement range High 0°C to 260°C Accuracy Low ±0.2°C from -20°C to 0°C ±0.5°C out of this range Accuracy High ±0.3°C from 0°C to 100°C ±0.5°C out of this range Communication 2.4 GHz (802.15.4) Memory 10,000 data points Sensor External stainless steel PT100 - Ø2,9x25mm Operating conditions -20°C to 50°C Resolution 0.01 Measuring and transmission period Adjustable from 5 sec to 12 hrs Internal memory recording period Adjustable from 5 sec to 24 hrs Response time t90 ~2 mn at 90% of the variation Protection IP65 Case Polycarbonate – Food contact Power supply Lithium 3.6v battery - Replacement Cable length 3 meter Battery life 2 to 4 years depending on use Dimensions and weight 63 x 42 x 25 mm / ~ 60 g Mounting Fixing eyelets & integrated magnets Supplied with Battery, red identification ring Compliance CE, ROHS, FCC, ETS 300-328, EN 12830 Standard calibration points Low -80°C / 5°C Standard calibration points High 20°C / 100°C

Download Product Sheet PDF
