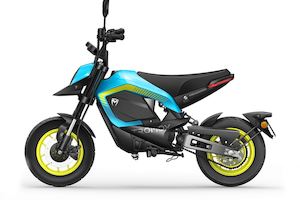

Tromox MINO Electric Street Bike Motorbike (Mini Electric Bike)

The MINO is an innovative electric moped by electric moped startup Tromox from China. The company is dedicated to high quality intelligent electric motorcycles.

The MINO is designed in a partnership with an 🇮🇹 Italian design firm and is designed to be easy to personalize.

The moped has a swap-able 38 Ah lithium battery made by Panasonic that provides a driving range of 118 km. The battery is of high quality and is of the same type as the batteries in the Tesla Model S.

The moped has a powerful 2,500 watt electric motor with 110 Nm torque for a top speed of 60 km/h.

The moped has a premium quality carbon steel frame, aluminum parts, high efficiency 180mm disc brakes and is equipped with over 20 sensors that monitor the health of the vehicle. The moped is light weight and easy to handle for less weighty drivers.

The moped has a digital dashboard.

The moped is optimized for drivers of any size, both male and female. Smart Moped

The moped connects to a smart phone for access to moped applications. The moped is cloud connected and receives over-the-air (OTA) updates for up-to-date and new features.

The moped is available in many colors and can be customized by the factory.

The moped can be ordered online and is shipped worldwide. Racing-grade mechanical frame, more solid and powerful

Adopts a high-quality carbon steel split frame. Compared to general electric vehicles, the machine frame is 30% thicker, and the supporting capacity is 30% higher. Max Speed 55km/h 100m acceleration within 10 seconds

Central permanent magnet synchronous motor.

Energy efficiency conversion rate reaches 96%, enables balanced weight of the whole vehicle, master a 15° slope with ease Max range 110km Single Charge Battery Range

The Lithium battery of automobile grade, 18650A battery cells, 3.5 hours charging duration (60V21Ah), Fast charge within 3 hours, 5 years battery lifespan. Efficient Disc Brake

The 180mm disc brakes of both front and rear wheels are equipped with new single-cylinder parallel calipers. It greatly improves the braking performance of the whole vehicle.

Mino Electric Motorcycle Specification

Size(L×W×H)

1500mmx730mmx935mm

Wheel Base

1020mm

Net Weight

68kg

Loading Capacity

100kg

Transmission Mode

Chain Drive

Battery Voltage

60V31Ah/60V26Ah

Torque

110N·m

Brake System

Hydraulic Brake

Intelligent Sbbystem

Intelligent Control VCU

Shock Absorber

Front: Converted/Spring oil damped type
Rear: Central/Spring oil damped type

Motor

Mid-drive motor

Tyre

Front: 90/90-10
Rear: 100/80-10

Battery

18650 Lithium

Max Speed

45km/h(EEC)

Climbing Capacity

15°（27/100）

Acceleration

10s(0～100m)

Range Per Charge

110km

(30km/h,60V31ah)

Rated Power

1200w

Peak Power

2500w

Charge Time

6A/4.3h(60V26Ah
