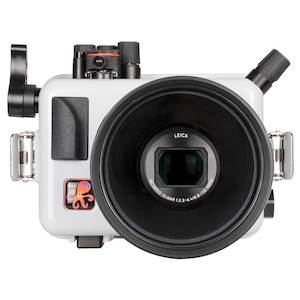

Panasonic Lumix ZS200, TZ200, TZ202 - Ikelite housing 6170.12
Product # 6170.12 About this Product
A full featured and durable underwater housing for Panasonic Lumix DC-ZS200, DC-TZ200, and DC-TZ202 digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.
The range of this camera is limited while inside of the housing in order to provide the best underwater imaging possible. The camera cannot be zoomed beyond 135mm equivalent inside of the housing.
The Panasonic DC-ZS200 (DC-TZ200) updates the popular ZS100 model with a slightly and much longer lens. The wider field of view is great for underwater photography, while the longer reach is desirable for land based travel photos. A 20MP CMOS sensor, 4K video capture, 5-axis image stabilization, and customizable control set make it a good all-around choice for underwater photography and world travel. Ergonomics and handling
This compact and lightweight housing allows you to operate your Panasonic Lumix camera up to depths of 200 feet (60m). It is designed and built in the USA by experienced divers with a commitment to providing top quality and value.
Large, easy-to-reach controls are provided for all camera functions. Soft-touch knobs are easy to grip with or without gloves on and provide quick access to important controls including front and rear dials and the mode control. Rear controls are marked with easy-to-see laser engraved symbols which never fade or fall off.
A trigger-type shutter lever control is designed for optimal sensitivity and a natural motion when shooting underwater. The standard control hugs the side of the housing for comfortable use when hand holding. The shutter trigger may be easily extended using the optional Shutter Trigger Extension # 4077.93 for more comfortable reach when using a handle grip.
The front-loading camera mounting system makes installation and removal a breeze. The camera mounting plate allows ready access to the battery and memory card, and features a standard 1/4-20 mounting point for attachment to a tripod topside. Wide angle and macro close-up
The optional WD-4 Wide Angle Dome # 6430.4 provides a wider angle of view underwater without the edge distortion, heaviness, or difficult attachment typically associated with an external wide angle lens. The WD-4 is a 0.75x magnification factor and simply slides on and off of the housing's lens port.
A press-fit Macro Adapter # 9306.78 is available for the attachment of 67mm threaded accessory macro lenses. We recommend a macro lens which is designed for underwater use like those from Epoque, INON, Subsee, Nauticam, and other manufacturers. The adapter should not be used with 67mm threaded wide angle lenses. The wide angle lens would be too far away from the camera's lens to provide an improved image. Accessory mounting
Two 1/4-20 threaded mounting points are included on the bottom of the housing for the attachment of a tray and handle system. Handles provide improved ergonomics underwater and are the foundation for your lighting mounts.
Light is absorbed as it travels through even short distances underwater, making colors appear dull or monochromatic. To preserve the natural colors of your subject, it's important to stay within arm's reachâ€"no more than 3-4 feet (1m) away.
There is a simple rule that brighter is better underwater. A high-quality lighting system can produce magazine quality results with almost any compact camera system. Color filters
Enhanced color correction and clarity can be achieved by adding a color filter or external light. The lens port of the housing accepts our 3" diameter color filters, which are available in two formulas: Tropical Blue Water # 6441.46 and Green Water # 6441.86. A color filter reduces the amount of light that reaches the camera's sensor, so they are most effective in sunny conditions up to about 45 feet (15m). The absolute maximum effectiveness is 80 feet (24m) in ideal conditions of full sun and visibility of 100 feet (30 m).
We also offer a Yellow Barrier Filter # 6441.16 for shooting fluorescence photography. Read more about fluorescence here. Flash and constant on lights
A flash or constant on light is necessary for close-up, night dives, and deep depths. An external light also brings out more colors in sunny conditions. External lights are typically not used in conjunction with color filters, as the combination will result in tones that are too red or too purple.
The location of the camera's flash in relation to the lens makes it unusable for lighting your subject underwater. However, the camera's flash may be used to trigger an external strobe. Two ports are provided for the connection of up to two fiber optically triggered underwater strobes.
Alternatively, a bright cons
