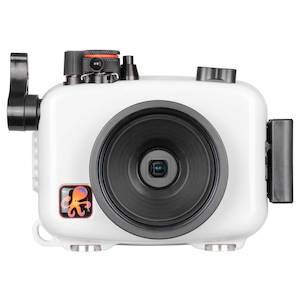

OM System TG-7, Olympus Tough TG-5, TG-6 - Ikelite housing 6233.06
A full featured and durable waterproof housing for OM System TG-7 , Olympus Tough TG-5, and TG-6 cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.
Housings produced after October 1, 2023 (serial number UC68462 and above) are updated to fit the OM System TG-7 camera. Older housings can be modified to fit the newer camera.
This robust, fully featured housing expands the capabilities of your Tough camera from the surf down to depths of 200 feet (60m). A side-mounted shutter lever and new control make shooting a breeze. Hard anodized aluminum and acetyl controls operate smoothly and are fully serviceable for many years of enjoyment.
Our brand new ABS-PC blend provides strength and corrosion-free performance year after year. The specially formulated color deflects the sunlight to keep your camera running cooler, longer. Durable construction keeps the system watertight shallow and at depths up to 200ft (60m), well beyond the reach of the Olympus branded housing.
Ikelite products are designed, built and tested in the USA. We use locally sourced, top-grade materials. Our housings are built by hand and individually tested for fit, function and waterproof integrity. We back our products with over 50 years of experience and service within the dive industry. Camera compatibility
Older TG-series cameras are not usable in this housing due to differences in lens and control placement. Flash
Due to the position of the camera's flash in relation to its lens, the built-in flash is not suitable to illuminate photos under water. For the best color and clarity, we recommend adding a filter, strobe, or constant-on light. The built-in flash may be used to trigger external strobes via fiber optic sync cord. Two ports are provided for the connection of up to two fiber optic cords.
Any Ikelite DS strobe may be connected using the Fiber Optic Converter # 4401.1 and Fiber Optic Cord # 4501. The AF35 strobe is not compatible with this housing. Fiber optic cord compatibility
- Ikelite Fiber Optic Coiled Cord # 4501
- INON Optical D Cable "Non-wireless type" L-Connector
- SEA&SEA Fiber Optic Cable (L-type) # 50107
- SEA&SEA Fiber Optic Cable II # 50128
- Olympus UW Fiber Optic Cable PTCB-E02
- Nauticam Optical Fiber Cable # 26211 Nauticam to INON
- Nauticam Optical Fiber Cable # 26212 Nauticam to Sea&Sea Wide angle, macro filters
Our 3-inch diameter ports feature a 67mm thread on the front for the easy attachment of external wide angle and macro wet lenses. Wide angle lenses make objects appear smaller, so that you can fit more into your frame underwater. Macro close-up lenses make small objects appear larger, so that tiny creatures will fill your frame.
The DC1 6" Dome Port # 6401 offers the best of everything: wide angle, macro, and over-under all on one dive. This special dome port replaces the housing's standard port and provides sharp 25mm wide angle, full through and macro capabilities, and is perfect for split shots (half-in, half-out of the water).
The Dome Port for Olympus FCON-T02 Fisheye for Olympus TG-6 # 64361 is also available.
The WD-3 Wide Angle Dome provides mid-range angle of view with no vignetting (dark shadows in the corners of the image).
The W-30 Wide Angle Lens, INON UWL-95S M67, and other 67mm threaded wide angle lenses, provide a wider maximum angle of view. Because these are separated from the camera's lens by glass, air, and water, some vignetting and edge distortion will be present. These effects can be reduced or eliminated by using a smaller aperture, zooming in slightly, and/or cropping in post-production.
External macro lenses with 67mm threads from INON, Epoque, and other manufacturers, can be attached directly to the front of the housing's port.
3-inch diameter color filters press directly onto these ports. Most wide angle lenses require a 3.6-inch diameter color filter. Refer to the product page for information on color filter compatibility. In the Box
- Housing
- Port cover # 0200
- Vinyl break-away safety lanyard # 0321.10
- Silicone lubricant # 0184.1
- 1 year manufacturer warranty Specifications
- 200 ft (60m) depth rating
- Controls for all camera functions except Log Switch
- Slightly positive buoyancy in fresh water
- 1/4-20 thread tray mounting with 3-inch (76mm) spacing
- Weight 1.1 lb (500 g)
- Dimensions 6.2 x 4.4 x 3.7 in (158 x 112 x 94 mm) including projections
- 3.0-inch diameter glass lens port
