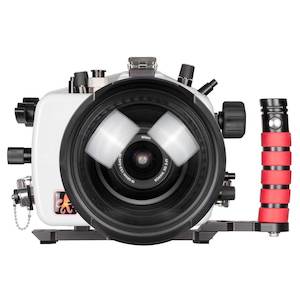

Nikon D7500 - Ikelite 200DL Housing 71017
Product # 71017 About this Product
A full featured and durable waterproof housing for the powerful mid-range Nikon D7500 DSLR camera. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.
This housing requires the addition of a compatible DL Lens Port for waterproof operation. Lens Port not included. Features
This popular model has been designed from the ground up to include all of our latest improvements. Lens Ports
The single most important feature is our Dry Lock (DL) port system. This exciting system is substantially more robust and easier to assemble than our time-tested Four Lock (FL) system. DL system ports are lightweight, versatile, and can accommodate extremely large diameter lenses with ease. If you're considering shooting professional quality lenses like the Nikon 14-24mm or Sigma 10-20mm HSM, then the DL system is essential.
Most popular lenses and select lens focus rings can be engaged using a simple yet effective gearing system that puts adjustment right at your fingertips. A large, soft-touch lobed knob on the side of the housing makes fine tuned adjustments a breeze. and focus gears differ depending on which lens you are using. All are lightweight and affordable. Refer to the DL System Port Chart to choose the correct gear. gears sold separately.
Due to differences in mount diameter and engagement, DL and FL system ports cannot be used interchangeably. The DL port mount may be removed and replaced with Port Locks for FL Port System (Set of 4) # 5509.04 for legacy users with standard or modular ports from our Four Lock system. This modification will prevent the use of newer DL ports. The housing cannot be converted back and forth repeatedly. Re-installation of the DL port base will require the housing to be returned to Ikelite or an Authorized Dealer and may incur additional service charges.
There are significant advantages to upgrading your lens ports to the DL system. For example, if you're shooting an 8" diameter dome, you'll also save almost 2 pounds by using the DL version instead. You can read about all of the advantages here. Vacuum System
The included vacuum valve allows you to vacuum test the housing to check for leaks prior to putting your expensive equipment in the water. Combined with a full view of the camera and o-ring seal through the back of the housing, there is no greater assurance that your gear will be safe. Our signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Use of the vacuum valve requires a compatible Vacuum Pump with Gauge # 47011, sold separately. TTL Exposure
This housings supports your choice of shooting all manual or adding a TTL converter depending on your application. The flash bulkhead has been moved to the top of the case for improved cord routing and reduced strain. Reliable locking connectors between the hotshoe and bulkhead make it easy to install the optional TTL hotshoe or carry back up parts when traveling to remote locations.
You can still enjoy the fastest and most accurate TTL exposure on the market by adding the NT2 Nikon TTL Hotshoe # 46064, Nikon TTL Converter with Ikelite plug # 4301.3, and a compatible Ikelite DS strobe. Flash exposure compensation can be added or subtracted using the camera's menu settings.
Manual strobe exposure is supported by the housing as is with no additional accessories required. The housing ships equipped with a manual flash hotshoe and Ikelite ICS-5 bulkhead. Use an appropriate sync cord to attach Ikelite, SEA&SEA, INON, Retra, or other compatible strobes. Controls and Set-Up
We've upgraded the shutter and AE-L/AF-L levers to a more natural feeling curved design. Both controls can optionally be extended using the Shutter Trigger Extension # 4077.93 for more comfortable use when using a Right Hand Quick Release Handle # 4077.02. If you're not already using back button focus, we recommend learning this valuable trick.
Our push buttons have been redesigned to reduce weight and salt build-up. The back of the housing features laser engraved control symbols which will never fade or fall off.
The camera mount is front-loading for easy installation and removal. A small mounting plate attaches to the bottom of the camera and secures in the front of the housing. The camera mounting plate does not need to be removed from the camera for surface use or when changing the battery or memory cards. The mounting plate features a 1/4-20 threaded mount on the bottom so that it can be attached to a tripod on the surface. Viewfinders
The included Supereye Viewfinder provides an enhanced view of the camera's optical viewfinder when viewed through a dive mask. The viewfinder r
