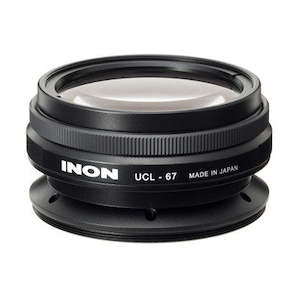

Inon UCL-67 M67 & LD (screw and bayonet types)

The UCL-67 series is designed best suited with 60mm-100mm macro lens for full-frame digital SLR delivering ultra high magnification yet high image quality and comfortable working distance for lighting.

- UCL-67 M67 Underwater Close-up Lens (screw mount type)
- UCL-67 LD Underwater Close-up Lens (28LD compatible bayonet type)

The new UCL-67 close-up lens is equivalent to 15 diopter designed to use for macro lens range of 60mm – 100mm (35mm film equivalent) with digital SLR, mirrorless system as well as for high-end compact system (max. optical 5x).

When used with Nikon 105mm (AF-S VR Micro-Nikkor 105mm f/2.8G IF-ED), the lens delivers 2.7x magnification (area ration is7.65x). Providing ultra-high magnification, the lens offers ample working distance for easy lighting.

Optional adapter ring allows to stack UCL-330 or UCL-165 M67 in front for even higher magnification …

A killer lens for many of enthusiastic macro lovers! Compatible Lens

- 60mm-100mm range macro lens for full-frame SLR ( 1)
- 40mm-60mm range macro lens exclusively designed for APS-C ( 1)
- 45mm-60mm range macro lens ( 1), standard lens ( 2) for Micro Four Thirds
- Compact digital camera with maximum optical 5x or less ( 2)
Product Features

- The lens is consists of 4 elements in 3 groups using high refractive index glass to accommodate with a macro lens for full-frame digital SLR with compact body yet delivering high magnification and superior image quality. Also compatible with compact/mirrorless digital cameras. ( 1)
- The UCL-67 is an ultra-high magnification close-up lens with underwater focal length 67mm (equivalent to 15 diopter) delivering maximum magnification 2.76x area ratio: 7.65x when using for 100mm range macro lens for SLR at the minimum focusing distance. ( 2)
- Designed sole use underwater to provide unparalleled high quality image as underwater close-up lens and effectively suppress aberrations in all focal range considering it ultra high magnification.
- While the UCL-67 delivers high magnification, it still offers long working distance. When using with 100mm range macro lens for SLR, working distance is 52mm (83.4mm from housing port surface) at minimum focusing distance ( 2). Together with its compact size, the lens supports friendly lighting even at minimum focusing distance.
- Employing achromatic lens effectively suppresses chromatic aberration and anti-reflection coating on all surfaces suppresses flare/ghost.
- Optional Lens Adapter Ring for UCL-67 allows to stack another INON M67 series close-up lens (UCL-165M67/UCL-330 on the front side of UCL-67 for even higher magnification ( 3).
- The UCL-67 M67 has M67 screw mount to provide wide versatility.
- The UCL-67 LD is to use for lockable INON 28LD Mount Base and LD Lens Adapter Base to support easy, speedy yet reliable installation.

( 1) Usable range is between 60mm and 100mm (35mm film equivalent). Beyond this range, there will be vignetting at wider side and deteriorated image quality at telephoto side.

( 2) When using for AF-S VR Micro-Nikkor 105mm f/2.8G IF-ED

( 3) Any other higher magnification close-up lens, UCL-100M67 or UCL-67 cannot be combined as they significantly degrade image quality. Specifications UCL-67 M67 ( 4)

Outer diameter/length: 70mm (2.76in.) / 37mm (1.46in.)
Weight: Air 340g (12.0oz) / Underwater 227g (8.0oz)
Mount system: INON M67 Mount
Depth rating: 60m (197ft)
Material/surface finishing: Corrosion-resistant aluminum alloy/rigid black alumite
Lens material/coating: Optical glass/anti-reflection coating
Construction: 3 groups 4 elements
Focal length Underwater ( 5): 67mm(2.64in.) UCL-67 LD ( 4)

Outer diameter/length: 70mm (2.76in.) / 37mm (1.46in.)
Weight: Air 326g (11.5oz) / Underwater 217g (7.7oz)
Mount system: INON 28LD Mount
Depth rating: 60m(197ft)
Material/surface finishing: Corrosion-resistant aluminum alloy/rigid black alumite, POM.
Lens material/coating: Optical glass/anti-reflection coating
Construction: 3 groups 4 elements
Focal length Underwater ( 5): 67mm(2.64in.)

( 4) This product is designed for underwater use only. Using on land will have less magnification, distortion on image corners or vignetting.

( 5) Focal length of UCL-67 M67 / UCL-67 LD standalone and not combined focal length with camera’s master lens. Compatibility

- 60mm-100mm range macro lens for full-frame digital SLR ( 6)
- 40mm-60mm range macro lens for APS-C ( 6)
- 45mm-60mm range macro lens ( 6), standard lens ( 1) for mirrorless camera
- C
