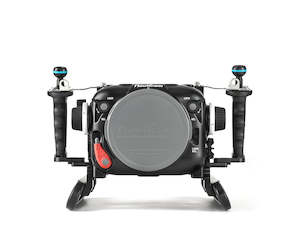

Nauticam MOD Komodo Housing for RED Komodo 6K - 16116, 16118, 16119
KOMODO is RED's smallest and most affordable camera to date. With 6K resolution, 16 stops of dynamic range, and global shutter Komodo packs an incredible amount of power in the palm of your hand. When paired with the Nauticam housing, an easy to use and travel friendly cinema system is created. Specifications
Dimensions 16116 Standard Housing 254mm (W) x 158mm(H) x 246mm (D)
16118 Housing with Shinobi Back 254mm (W) x 158mm (H) x 324mm (D) 16119 Housing with Ninja V-S Back 254mm (W) x 158mm (H) x 351 (D)
Weight in Air 16116 Standard Housing 4.0 kg
16118 Housing with Shinobi Back 4.9kg 16119 Housing with Ninja V-S Back 6.35kg Weight in Water (incl. camera and battery) -0.73kg Depth Rating 80m Port Opening N120 Cinema The RED KOMODO
The KOMODO camera features a 6K Super 35 sensor with up to 16 stops of dynamic range. R3D files (REDCODE RAW) can be recorded directly to CFast 2.0 cards, eliminating the need for expensive proprietary media. It also features Canon's new RF mount with full support of the Canon EF to EOS R lens adaptor allowing a wide variety of focal lengths to be used. KOMODO is RED's smallest form-factor and most economically priced camera to-date. The feature set is clearly aimed at those requiring professional level specs in a travel-friendly package, which accurately describes the majority of underwater filmmakers.
Key Camera Specifications:
- 6K Super 35 Sensor (6144 x 3240)
- R3D Files (REDCODE RAW)
- Records to CFast 2.0 cards
- Canon RF Lens Mount
- Dual Battery Mount (Canon BP-955/975)
- 12G SDI Out
- Integrated LCD Screen with Touch Camera Control
- Wireless Control From a Smart Phone
- Global Shutter Mode
- Anamorphic Options
Recording Formats:
- REDCODE RAW
- 6144 x 3240 at 40 fps
- 5120 x 2700 at 50 fps
- 4096 x 2160 at 60 fps
- 2048 x 1080 at 120 fps
- ProRes 422/ProRes 422HQ
- 4096 x 2160 up to 60 fps
- ProRes 422
- 2048 x 1080 up to 120 fps The Nauticam Komodo Housing
The Nauticam KOMODO housing is officially RED APPROVED. The housing is engineered in a similar fashion to previous Epic LT and DSMC2 LT housings, providing the most compact and travel friendly system possible. Komodo offers seamless integration with DSLR lenses and the same N120 port system used in Nauticam DSLR and Cinema systems. Enjoy unmatched user friendly setup and intuitive operation including tool-less setup and tear down in minutes. Batteries can be swapped without ever removing the camera from the housing, and lens changes can be accomplished in seconds.
The Nauticam KOMODO housing uses the N120 Cinema port system, shared with Nauticam's other N120 platform cameras which allows for easy transition to the Nauticam Komodo from other N120 Nauticam systems. The N120 system also provides access to Nauticam's line of professional premium optics such as the WACP-1/2 and SMC-1/2.
The housing also features adjustable handles with easy access to the cinema style and focus knobs. On top of the housing is a 1/4"-20 cheese plate which allows for a wide variety of accessory mounting points.
The Nauticam KOMODO is also backed by Nauticam's 2 year warranty. Lens Support
The RED KOMODO features a Canon RF lens mount, but currently RED is only offering support of Canon EF lenses. The Nauticam KOMODO housing offers full support of the Canon EF to EOS R Adaptor along with the Canon EF to EOS R Adaptor with Variable ND Filter. The left side of the housing features an easily accessible command wheel for smooth ND changes. Once RED releases RF lens support, the Nauticam KOMODO housing will be ready and fully compatible.
Regardless of EF or RF lens selection, changing lenses is quick, easy and doesn't require any tools. Note that when changing between RF and EF lenses, the camera must be removed from the housing to remove or install the RF to EF adapter. Nauticam is constantly testing new lenses to provide optimized port and extension combinations. Large cinema-styled control wheels on the housing, located within easy reach of the handles, provide precise manual focus and control with supported lenses when used with the corresponding lens gear set.
Not being limited to using DSLR lenses is crucial for cinema systems and the Nauticam KOMODO housing, when used with the 16410 N120 to N200 Port Adapter can support the use of Cinema Lenses and the associated N200 Port System.
