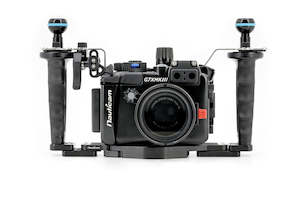

Canon PowerShot G7 X Mk III - Nauticam NA-G7XIII housing Pro Package - 17330P
The NA-G7X Mark III ships with the “Standard" Port but other ports are available from the N50 system. Supplied with the housing, this port allows full through and features a 67mm threaded front for attaching accessory macro lenses or a flip-adapter. This port is ideal for mid-range fish portraiture or close-up and macro work with add on wet-lenses. Integrated Vacuum Check and Leak Detection System
The Nauticam vacuum check and leak detection system is shipped with NA-G7XMKIII as standard equipment. Combined with an accessory vacuum valve (PN 25624), this monitoring system provides constant updates on the watertight and safe-to-dive status of the housing. A simple color-coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.
The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action-packed dive. Optional Pro Package Configuration
The NA-G7XIII is available in the Pro Package configuration that comes with the Flexitray II, Right Handle, two ball-mounts and M14 vacuum valve pre-installed. The standard NA-G7XIII ships with stainless steel stiffening brackets and shutter release extension should a Nauticam Easitray or Flexitray be added later. HDMI Output
The G7X Mark III has HDMI output for video, allowing for the use of external monitors which make judging exposure, focus and composition easier than using the built-in LCD of the camera. Nauticam has included an m16 port on the NA-G7XIII to take advantage of HDMI connectivity. By adding the optional 25028 Socket Extension and 25032 Custom HDMI bulkhead, the NA-G7XIII is compatible with external monitor housings such as the NA-502B-H or NA-Ninja V (HDMI 1.4 connection only). RESOURCES
PDF Manual Download In The Box
- NA-G7XIII housing
- N50 Standard Port
- Instruction manual
- Spare silicone rubber housing o-ring (90135)
- O-ring remover
- CR2032 battery (for moisture alarm)
- Lubricant
- Set of Allen keys
- Set of handle brackets with shutter release trigger
Pro Package also includes
- flexitray
- right handle
- two mounting balls
- M14 vacuum valve
- shutter extension Accessories
- 25624 M14 Vacuum Valve II (Pushbutton Release)
- 25123 LCD Magnifier attachment rails for NA-S110/S120/TG3/G7X/G7XII/G7XIII
- 25106 LCD Magnifier with Dioptric Adjustment
- 38022 Diffuser for NA-G7X/G7XII housing (for production version)
- 7 1 207 Flexitray II with left handle (with 2pcs 1/4'' screws)
- 71208 Adjustable right handle II (for Easitray II & Flexitray II)
- 38702 N50 3.5'' acrylic Dome Port
- 38703 N50 Short Port with Bayonet Mount (To use with WWL-1) ( range 24-65mm)
- 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm Lenses
- 83203 Wet Wide Lens Compact (WWL-C)
- 83214 Bayonet Mount Adaptor for SMC/CMC
- 81301 Compact Macro Convertor 1 (CMC-1, 4.5X Magnification)
- 81302 Compact Macro Convertor 2(CMC-2, 2.8X Magnification)
HDMI Connectivity Accessories
- 25028 Socket extension for 25032 HDMI bulkhead with M16 thread 1
- 25032 Custom HDMI bulkhead to use with a socket extension
- 25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/XH1/A6400 (for internal connection from HDMI bulkhead to camera) 2
1 M16 extension ring is required, which is included in NA-058/502H/FHD5/502B-H monitor housing.
2 The pop-up flash needs to be in up position in order for the internal cable to work (flash up lever is disabled when using an external monitor) Video
