Canon EOS R6, R6 Mk II - Nauticam NA-R6II Housing 17339
Talk to us about using with the original Canon ROS R6 and flash triggers
Introducing NA-R6II The Canon EOS R6 Mark II Camera
The Canon EOS R6 Mark II is one of the latest in Canon's full-frame mirrorless camera lineup which has gained unprecedented demand. It features the RF lens mount which has the same large 54mm diameter but the ability to have larger rear lens elements that are closer to the sensor gives increased corner and outer edge sharpness.
The R6 Mark II uses an all new 24MP CMOS sensor which boosts the resolution from its predecessor and also significantly improves its rolling shutter performance. It offers in-body image stabilization rated at up to 8 stops of correction. The camera's Dual Pixel CMOS AF II autofocus system uses 1053 autofocus points across the entire frame. It is also capable of recording 4K video at up to 60p internally and 6K 60p externally.
The EOS R6 Mark II can also use the large EF-mount lens lineup via the Canon RF to EOS R Adapter.
Key Camera Specifications
- 24.2MP full-frame CMOS sensor
- UHD 4K shooting up to 60p, 1080 at up to 120p
- 6K ProRes RAW recording externally up to 60p
- 100% coverage Dual Pixel II AF system
- 12 fps / 40 fps burst (mechanical / electronic shutter)
- 3.69M-dot OLED EVF
- 3" 1.62M-dot vari-angle touchscreen LCD
- Dual UHS-II SD slots

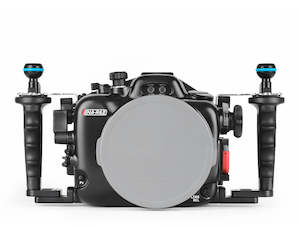

- 580 shot-per-charge battery rating The Nauticam NA-R6II Underwater Housing for the Canon EOS R6 Mark II Camera
The NA-R6II underwater housing follows suit with Nauticam's drive for innovation and it supports both the Canon EOS R6 and R6 Mark II. A conversion kit is required for the original R6 and will be provided upon request. Like its predecessors, the NA-R6II presents shooters with the ability to use both the available legacy EF lenses via an adapter in addition to their native RF optics. To support both the legacy and native lenses, Nauticam has integrated the NA-R6II into the N120 port system. Canon's EF to RF mount adapters can be affixed to the camera before insertion into the housing. When using the EOS R6 Mark II inside the housing with the adapter and a supported EF lens, the port and extension ring arrangement will be identical to the same setup on a Nauticam Canon N120 DSLR. With the ever growing RF lens lineup, you can also follow the dedicated N120 Canon RF port chart that is being updated and expanded with each new lens release. Please note that the Canon Control Ring and Drop-in Filter EF to EOS R adapters are not accessible within the housing. Mission Control
Nauticam engineers are obsessed with getting the underwater image maker unfettered access to all the necessary controls, with as many within easy reach of the ergonomic rubberized handles. This Mission Control philosophy extends to the NA-R6II where a dual thumb lever and sub-lever are placed by the right handle. The dual thumb lever on the front right side activates the "M-Fn" and "Rec" buttons while the sub-lever on the right rear side corresponds to the "AF-ON" button. Near the left handle is a thumb lever for "Playback" for easy image review.
Large knurled and rubberized control dials access the camera's "main" and "sub" command dials. The two-stage trigger allows for smooth focus and firing activation. Additional buttons for "Menu", "Focus Point Selection" and others are also easily reached from the handles. Flash Triggering
Flash triggering is achieved via one of two optional Flash Triggers, a manual LED trigger (PN 26305) or a TTL Flash Trigger (PN 26321) that use the built-in fiber optic bulkheads with optional fiber-optic cables to trigger supported strobes. For controlling strobes that do not support fiber optic flash triggering, a variety of legacy hot-shoe flash control bulkheads are available. Integrated Vacuum Check and Leak Detection System
The Nauticam vacuum check and leak detection electronics are shipped with the NA-R6II as standard equipment. Combined with an accessory M16 vacuum valve (25625) this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.
The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.
Resources
Support and Downloads
NA-R6II Manual Download PDF What's In The Box:
- NA-R6II Housing
- 90137 Spare main O-ring, O-ring remover and l
