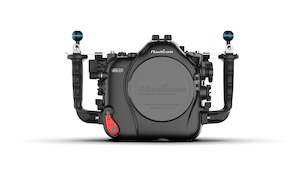

Canon EOS R1 - Nauticam NA-R1 Housing - 17342
The first batch(6pcs) is 80m, SN from A637182 to A637187. Features
- Multi-directional pad with two Piano keys to access Q and Set button
- Magnify and Playback can be accessed by the left side double Pad
- AF-ON and Record can be accessed by the right side double Pad
- Infor Button is routed to the right side of housing
- TTL Flash Switch Lever on the top left, and Still/Movie Switch Lever on the top
- right
- Fn1 and Fn2 Lever routed to front left and front right side
- Plastic holder for Apple air-tag
Housing O-rings:
- 90222 Housing O-ring (I.D.=220mm, C.S.=4.0mm)
Port system:
- N120 Canon RF mount port system
- N120 Canon EF mount port system for EF lenses with below adapters
- Canon EF to EOS R mount adaptor
- Canon EF to EOS R control ring adaptor (19561 gear is required)
- Canon Drop-In Filter Mount Adapter EF-EOS R with Variable ND Filter.
26320 Control Kit for Canon Drop-In Filter Mount Adapter EF-EOS R, SN after SN A484149 is required. What’s in the box
- NA-R1 Housing
- Housing Cap
- 2x Optical bulkhead caps
- 2x Handles with mounting balls and 2x handle brackets pre-installed
- Panasonic CR-2450 Battery (pre-installed for moisture alarm)
- Spare main O-ring, O-ring remover and lubricant
- Set of Allen Keys
- Padded housing bag and shoulder strap Recommended Accessories Flash Triggering
Optical Trigger
- 26301 Flash trigger for Canon
- 26321 TTL Flash Trigger for Canon
- 26216 Universal Optical Fiber Cable is required.
Electrical Triggering
- 25017 M14 6 pin bulkhead for Canon system
- 25020 Canon hotshoe plug to a M14 Nikonos bulkhead (x and ground connection only)
- 25022 Canon hotshoe plug to M14 Ikelite style bulkhead (x and ground connection only) Housing Mounts
- 17959 Housing Mounting Ball with 1/4" Screws
- 25221 M10 strobe mounting ball for housing
- 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
- 25228 M5 strobe mounting ball for housing Vacuum Valve
- 25625 M16 Vacuum Valve II (Pushbutton Release) Lanyards & Handles
- 25413 27cm lanyard with 2 snap hooks
- 28130 Hand Strap for 28113
- 28123 Pair of handles - size S (10mm closer to housing) Viewfinder
- 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
- 32214 Nauticam Full Frame Angle Viewfinder 40°/ 0.8:1
- 87213 Reverse Angled Viewfinder for EMWL 40°/ 0.8:1
- 87214 Reverse Straight Viewfinder for EMWL 40°/ 0.8:1 Surface USB-PD Power bank
- 26325 M16 USB-C Bulkhead with USB-C Connector
- 26326 M24-M16 Adaptor for use with 26325
26325 can't be used with HDMI OUT simultaneously. HDMI OUTPUT 1) Required accessories for HDMI 2.0 Cable System
- 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
- 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-a1 to use with Ninja V housing)
Compatible Monitor Options:
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Recorder/Monitor/Player (excl. HDMI 2.0 cable)
- 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Recorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module 2) Required accessories for HDMI 1.4 Cable System
- 25033 Standard HDMI bulkhead with M16 thread
- 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1 (for connection from HDMI bulkhead to camera)
- 26326 M24-M16 Adaptor for use with 26325 instead of existing 25081
Compatible Monitor Options:
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Recorder/Monitor/Player (excl. HDMI 2.0 cable)
- 25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead) Required Monitor Mounting system
- 17951 Nauticam Atomos Shogun housing mounting system
- 17954 Tripod plate for NA-A7S and NA-GH4
- 17957 Nauticam Atomos Shogun Housing Mounting Adaptor (after SN A439736
