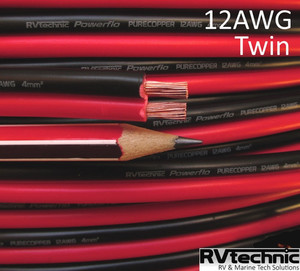

12AWG, Twin core, 30 Amp, 105degC PVC, Pure Copper, Red+Black (qty in 10cm) RVtechnic RV&Marine



Price is per 10 centimetres (10 cm).

Please enter qty as your required length (ie: qty 1 = 10cm, qty 6=60cm, qty 15 = 150cm)

Quality twin Core 30amp cable

65 pure copper strands per wire


Very low DC resistance 5.6 ohms/km (per wire)

105degC PVC insulation suitable for up to 120volts DC or 50volts AC

Dimensions ( /- 0.5mm):
PVC Insulation outer: 4.6mm x 9.2mm
Bunched conductor diam: 2.4mm

Peak ratings:
120 amps for up to 5 seconds
85 amps for up to 10 seconds

Please note: 30amp max continuous rating is calculated for copper not exceeding max temp rating of the insulation. Suggested operating current:24amps, temp-rise will be moderate, approx 25degC

Shipping is free if ordered together with any other RVtechnic product that has shipping already paid for (Pay for shipping only once
