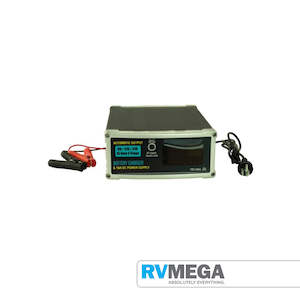

Power Train 16 Amp 8 Stage 6/12/24V Charger & DC Power Supply

The Power Train PTC40AL battery charger is designed to effectively charge all automotive and industrial-type batteries. Manufactured to the latest design parameters and highest quality levels, they incorporate a unique micro-processor controlled seven-stage pulse charging system that intelligently assesses battery condition and size, to make battery charging much safer, and more effective - thus prolonging battery life.

They are ideal for Automotive, Motorhomes, horse trucks, and marine applications, to ensure the correct, safest, and BEST method of charging a high capacity 6V/12V or 24V battery bank or individual batteries.

- Built-in microchip monitoring and charging control system.
- Accurate voltage and current detection, monitoring on both AC input and DC output.
- Optimally designed charging cycle designed for lead-acid, SLA, Gel, deep cycle, and calcium batteries.

Complete eight-stage pulse charging cycle including

- Desulphation
- Soft start
- Bulk
- Absorption
- Analysis - battery fault diagnosis
- Boost
- Float
- Automatic adjustment of charging voltages according to environmental temperature.
- Overcharge protection - protecting the battery from damage due to overcharging.

Protection From

- Reverse polarity
- Short circuit
- Overload
- High temperature

Specifications

- Model No PTC40AL
- Output Current 40A
- Output Voltage (Nom) 6V/12V/24V and 13.5V DC
- Input Voltage 175-255V / 50-60Hz
- Battery type selectable Gel/Calcium/Lead Acid/AGM
- Chargeable battery size 17A/H to 600 A/H
- Working Temperature: -15C to 55C
- High-Temperature Protection. Active when charger internal temperature is above 60C, the charger output current will automatically reduce 75% of normal output. Once the temperature drops below 55°C, the charger output will return to normal
