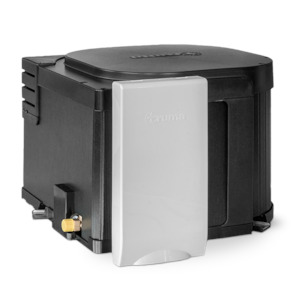

Truma Gas/240V Water Heater 10Ltr - With Installation Kit

The Truma gas / electric boiler has a powerful gas burner heats the water in your caravan or motor home quickly and an electric heating element that heats the water even faster. The gas boiler has excellent insulation to ensure that almost no heat is lost. If the water temperature drops, the electronics reignite automatically. Set the desired water temperature anywhere between 30°C and 70°C with the control unit.
When the water is hot, you can take a long shower with ample time to soap yourself. When the Truma gas boiler is running, water is continuously reheated while you are showering. This means that a second person can shower immediately afterwards.

- Insulation prevents heat loss
- Additional electric heating element (optional)
- High pressure resistance of the Truma gas water heater (all submersible and pressure pumps up to 2.8 bar can be used)
- Safety ensured with electronic control components and overpressure valve
- Stainless steel container

Features:

- Insulation prevents heat loss
- High pressure resistance of the Truma gas water heater (all submersible and pressure pumps up to 2.8 bar can be used)
- Safety ensured with electronic control components and overpressure valve
- Stainless steel container
- Low gas consumption with high efficiency
- Option to use on gas only, 240v or mixed mode
- Very compact, requires little installation space
- All fittings included are JG push-in connections for easier and faster installation

Specifications:

- Energy sources: LPG
- Power supply: 230v
- Output of electric heating element: 850/1300 W
- Gas output: 1500 W
- Power consumption (at 230 V): 3.7/5.7 A
- Water capacity: 10 litres
- Heating time: from approx. 15 °C to approx. 70 °C:

- approx. 31 min. (gas mode)
- approx. 29 min. (electric mode)
- approx. 16 min. (mixed mode)
- Gas consumption: 120 g/h
- Weight empty: approx. 7.4 kg
- Dimensions: 360 x 350 x 261mm (L x W x H)
- Power consumption (at 12 V):

- Ignition: 0.16 A
- Heating: 0.12 A
- Stand-by: 0.05 A
- Temperature limit: 70 °C
- Pump pressure: max. 40psi
- System pressure: max. 65psi
