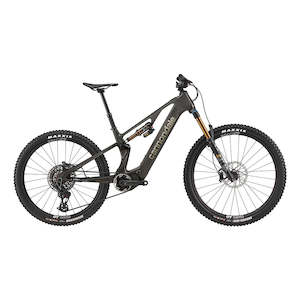

Cannondale Moterra SL
The Lightest Full-Power Mountain Bike Ever
Moterra SL is the first 150mm trail bike to pack 85Nm of torque, 600W ofpeak output, and 601Wh of power into a machine weighing as little as 19.3kg / 42.5lbs. Full-power fun meets lightweight agility – it’s in a class of its own.
High on Power, Low on Weight
Electric mountain bikes with this much power on tap havenever been this light. The lightweight carbon fiber frame featuresour weight-saving FlexPivot technology, and houses a custom battery that packs more watts per kilo than any other on the market. That unmatched power-to-weight ratio makes forone hell of a fun ride.
FEATURES
Shimano EP801 Drive Unit
Shimano’s top-shelf e-MTB system: lightweight, reliable, and powerful. 85Nm of torque and 600 watts of max power, delivered via custom-engineered ride modes for full-power fun.
Custom 601Wh Battery
Using special cells that store more power per kilo than ever before, we created an incredibly compact battery that packs a full 601 watt-hours into just 3.1 kg including the wiring harness. All of the power, less of the weight
Custom-Tuned Ride Modes
Specially designed assist modes for the perfect ride : ECO - max range forall-day exploits. TRAIL – mid-power, great for riding with friends on lightweight e-bikes. BOOST - ramps up the assist for ripping with full-power e-bikes.And TURBO – full power, all the time. Have it your way.
SPECIFICATIONS
FRAME / Moterra Neo SL, Series 1 Carbon construction, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, DirectLine internal cable routing, 29" FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, tapered headtube, angle adjust headset
FORK / Fox Float Factory 36, 160mm travel, Grip2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
HEADSET / Acros Adjustable Angle (1.2°)
REAR SHOCK / Fox Float X Factory, 2 pos adj, EVOL LV, 210x55mm
E-SYSTEM / Drive Unit Shimano EP801, 85Nm, Custom Tuned, Walk, Eco, Trail, Boost and Turbo Modes
BATTERY / Custom 601Wh battery
DISPLAY / Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible
CHARGER Custom 4A
DRIVETRAIN
Rear Derailleur / SRAM XO Eagle AXS, T-Type
Shifters / SRAM AXS T-Type POD Controller
Chain / SRAM XO Eagle, T-Type, Flattop
Crank / e thirteen e spec Plus, 165mm, 34T
Rear Cogs / SRAM XO Eagle, 10-52, T-Type
BRAKES
Brakes / SRAM Code Silver Stealth, 200mm HS2 rotors
WHEELS
Hubs / (F) DT Swiss 350, 15x110mm / (R) DT Swiss 350 Ratchet System 36 SL, 12x148mm
Rims / DT Swiss XM 1700 Spline, 30mm inner width, TC tubeless ready
Spokes / DT Swiss Competition, straight pull
Tires / (F) Maxxis DHF, 29x2.5 ", 3C, EXO , tubeless ready / (R) Maxxis Dissector , 27.5x2.4", 3C, EXO , tubeless ready
COMPONENTS
Handlebar / HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
Grips / Cannondale TaperRidge
Stem / Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0°
Saddle / Fizik Terra Ridon X3, 145mm, Wingflex, K:ium Mobius rail 7x7mm
Seatpost / Cannondale DownLow Dropper, internal routing, 31.6, 150mm (S), 170mm (M-XL)
CONNECTIVITY
Wheel / Sensor Cannondale Wheel Sensor
Sizes / SM, MD, LG, XL
