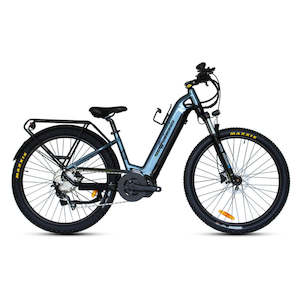

2023 Wattwheels Bighorn Low Step Mid Drive - Gloss Stone Blue
Features
The new Bighorn has had a significant makeover for the 2023 season.
The new designed low step frame is now available in three sizes and the aesthetically pleasing sleeker downtube holds an even bigger 720wh capacity battery with the new Samsung 21700 cells.
Powered by the ultra-quiet & smooth proven Ananda M100 motor this bike can produce an astonishing of 120N.m of torque to get up those steepest climbs. The ultra-reliable 10 speed Shimano Deore drivetrain paired with Shimano hydraulic brakes gives you the confidence this bike will get you from A to B.
Included are all the accessories - mudguards, rear rack, front and rear lights and now the new colour displays also come with a handy USB port for charging your phone or any other devices you may have.
A great universal bike perfect for those iconic trails as well as a good commuting option due to the speed and range these bikes can achieve.
Specifications
Motor Ananda M100 300Watt Motor(120N.m Torque)
Battery 48V15Ah 21700 Samsung Li-Ion Cells 5000Mah (720WH)
Frame Small , Med and Large(29r) in Low Step frames, Medium, Large(29r) and Xlarge(29) in Top tube frames
Speed Up to 42km/r
Distance 35km Throttle only, 60-120 km Pedal Assist
Brakes Tektro Hydraulic 180mm Rotors
Derailleur Shimano Deore 10 Speed (Shadow plus)
Cassette Shimano 11-34 CS-HG500
Shifter Shimano Deore 10sp SL-M6000
Crankset Ananda Isis 44T, 170mm
Display Ananda D16 Colour Display with USB charge port
Front Fork Suntour XCM34 E-Bike rated with Boost & Lockout - 100mm Travel
Tyres Maxxis Ardent/Ikon 27.5 2.25 - (29 on 19 & 21inch models)
Charger Sans 48V3Ah Smart Charger
Seat SR Memory Foam Relaxed Unisex - Black
Chain KMC X10E EPT Anti Rust ebike Chain
Seat Post 31.60 Alloy
Hubs Novatech sealed bearing with boost
Rims Alexrims MD35 27.5/29 13G 36H
Handlebar Promax 680mm, 31.8, 10mm Rise (Sweep on Low step frames)
Gribs Velo 140mm Lock On
Throttle Thumb Left hand (can be removed)
Net Weight 25.5kg without battery (battery 4kg)
Colours British Racing Green or Gloss Stone Blue
Warranty Full Comprehensive - 5 years frame, 2 years motor/battery/display and 12months on mechanical components
Weight Limit 120Kg Total load weight
