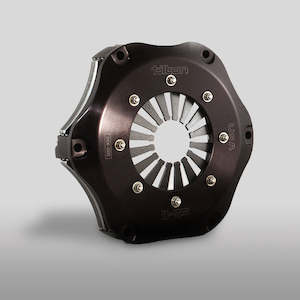

Metallic Racing Clutch 3 Plate 7.25" Heavy Duty

Engineered for applications that require additional heat capacity, Tilton‚ 7.25‚≥ OT-II heavy duty metallic racing clutches offer the low moment-of-inertia, high torque capacity and reliability necessary for the most demanding racing applications. Four diaphragm spring rate options offer a wide range of torque capacities and release loads to tune the clutch for the application, and the high-mass pressure plate provides additional heat capacity for severe applications. Applications

- Off-Road
- Endurance
- Drifting
- Other applications that require additional heat capacity.

3-Plate Specifications:

SPRING COLOR

TORQUE CAPACITY
(LB-FT/NM)

RELEASE LOAD
(LBS/DAN)

Orange

840/1142

560/247

"

840/1142

560/247

Gray

1020/1387

680/299

"

1020/1387

680/299

Double Gray

1140/1550

760/334

"

1140/1550

760/334

Triple Gray

1245/1693

800/352

"

1245/1693

800/352

All 7.25‚ heavy duty metallic clutches feature a high-ratio pressure plate.
Values listed are typical for release bearings with the recommended 44mm contact diameter. Larger contact diameters will increase release load.
