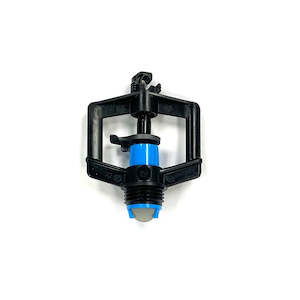

Toro Waterbird PC - Pressure Compensating With Deflector Tab

Toro Waterbird PC - Pressure Compensating With Deflector Tab

The Toro Waterbird ® Pressure Compensating sprinkler is engineered and manufactured in Australia to provide improved water application. It is built to operate in harsh irrigation environments and has a patented pressure compensating diaphragm assembly, resulting in greater stream control, better uniformity and increased radius.

- Inlet: 10mm MBSP/NPT
- Materials: frame, bearing and nozzle - Acetal / Spinner - Nylon / Diaphragm - Rubber
- Assembled Option: Flows up to 99l/h use 5mm tube and stake. Flows above 99l/h use 10mm tube and stake.
- Recommended Operating Pressure: 150 – 350k Features

- Unique patented pressure compensating diaphragm assembly for improved performance
- Pressure compensating mechanism provides uniform flow on undulating terrain
- Anti-insect/dust proof spinner retracts to protect nozzle when not in operation
- A two-stage spinner provides two diameters of throw. The smallest diameter is for younger trees, and the deflector is simply removed for developed trees
- Aerofoil shaped frame improves sprinkler distribution pattern
- Large droplet size is less susceptible to wind effects
- Snap Fit bearing for easy infield maintenance
- Low angle of throw maximises under foliage penetration
- Eight colour coded flow rates from 35l/h to 152l/h
- Fully assembled models available with pre-installed tube and stake Specifications

- Inlet: 10mm MBSP/NPT
- Recommended Pressure Range: 150 – 350kPa
- Materials: Frame, bearing and nozzle: Acetal Spinner: Nylon
- Flow: 47-151l/h
- Radius: 0.5-1m
