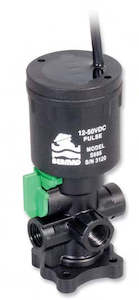

IRRInet Bermad S985 DC Latch Solenoid - 3 Wires

DRY MAGNETIC LATCH SOLENOID with Isolating Membrane & Hydraulic Base

3-Way, 12VDC Latch, 3- Leads

The BERMAD S-985-3W-BB is a compact 3-Way Latching Solenoid Pilot Valve, comprised of two main components: a dry solenoid actuator and a 3-way hydraulic pilot valve. The actuator is neutralized from water damages by an isolating membrane, which hermetically isolates it from the water. The Model S-985-3W-BB consumes power only when switching positions, using a very short electric impulse. This prolongs life of batteries and enables solar recharging. The hydraulic base features a manual override and consists of a bracket for attaching to the valve or to a solenoid manifold.

Features & Benefits

A??dvanced Construction Materials

- Proven pressure, voltage and weather resistance
- Highly durable in corrosive environments
- Protection Class- IP68; NEMA Type 6D

D??ry Actuator and Superb Finish

- Reliable operation under dirt loaded water
- Suitable to turbid, muddy and/or corrosive water

S??hort Electrical Impulse Latch Activation

- Extremely low power consumption
- Low voltage battery operation
- Saves wires and infrastructures
- Suites most Battery Operated Controllers on the market
- Applicable in solar activated systems

H??ydraulic Base with Installation Bracket

- High flow capacity quickens valve response
- Manual override open and close
- Simple installation to valve or manifold

R??eliable and Durable Product that Bears the Stamp of BERMAD Quality
