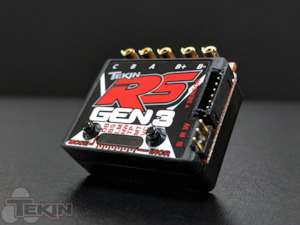

Tekin: RS Gen3 Electronic Speed Controller
The RS GEN3 brings a suite of enhanced features including better power handling and improved tuning features that give you unmatched adjustability. Maintain superior control in all situations with state-of-the-art components, award-winning performance and proven reliability. The RS GEN3 gives you the tools to win!
Standard features include an updated HD solder post design for easy soldering, a High Voltage BEC and HotWire compatibility for extensive tuning. Next generation components put more power at your disposal and new firmware make the RS GEN3 our smoothest, best-driving RS ever. SPECS
Controls: Forward/Brake/Reverse
Input Voltage: 2S-3S LiPo / 4-9S NiMH-NiCD
Motor Limit Brushless Mode 2S: 8.5T 2-pole 36mm Can
Motor Limit Brushless Mode 3S: 10.5T 2-pole 36mm Can
Motor Limit Brushed Mode 2S: 10T 36mm Can
Motor Limit Brushed Mode 3S: 20T 36mm Can
Max Current: 140amps per phase
BEC: 6.0v / 7.4v @ 5.5amps
Dimensions: 1.0 x 1.3 x.51" / 24.5 x 34 x 12.9mm
Weight:.83oz / 23.5g
per manufacturer spec
OFF ROAD
1:10 2WD Buggy
1:10 2WD Truck
1:10 2WD Short Course
1:10 4WD Buggy 13.5T
ON ROAD
1:12 2WD Pan Car
1:10 2WD Pan Car
1:10 World GT
1:10 2WD Formula 1
1:10 4WD Touring Car
OVAL
1:10 2WD
1:10 SK Car
1:10 Stock Car
1:10 Winged Sprint
FEATURES
Bluetooth Wireless Mobile and USB PC Tuning with the HotWire 3.0
QuickTune™ One Touch Programming
New HD Solder Post Design
3rd Channel Input for On-The-Fly Drag Brake Adjustments
Adjustable Torque Control
Adjustable Throttle and Brake Frequencies
High Voltage Programmable BEC
HotWire™ Programming Port
Data Logging Capability
Sensor Checker
On-Board Temperature Indicator
ESC Self Diagnostics with Error Codes
Fully Proportional Forward/Brake/Reverse
Brushless and Brushed Motor Drive
Sensored or Sensorless Operation
LiPo Safe with Custom Voltage Cutoffs
Sensor Plug for Precise Commutation
Lightweight Chassis Design
HDAC: High Density Copper PCB's
Ultra-smooth and Precise Throttle and Braking Control
ON BOARD QuickTune™ PROGRAMMABLE FEATURES
DB - Drag Brake (13 steps)
BS - Brake Strength (13 steps)
LM - Torque Limiter (7 steps)
NW - Neutral Width (13 steps)
TP - Timing Profiles 5 Preset - 2 Custom
MT - Motor Type
Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
VC - Voltage Cutoff : 2S, 3S, Custom
requires HotWire™ sold separately.
