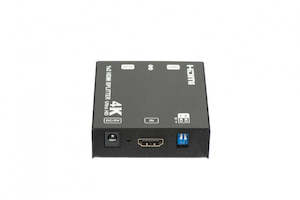

1 in 2 out HDMI 2.0 4Kx2K UHD Splitter

This HDMI 2.0 4Kx2K UHD Splitter distributes 1 way HDMI signal from STB,DVD Blu-ray players or PS3.to 2 way HDMI signal to connect to projector, DLP,LCD or other HD displays simultaneously. Features

- Simultaneously displays an Ultra Hi-Def source on up to two Ultra HD displays.
- Supports resolutions up to Ultra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0 ) and 1080p Full HD.
- Supports four kinds of EDID handling abilities: mixed EDID, copy EDID, default 1080p output, default 4Kx2K output.
- Supports 36 bit Deep Color.
- Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio.
- HDCP Compliant.
- Support 3D. Specifications

- Operating Temperature Range: -5 to 35℃( 23 to 95℉)
- Operating Humidity Range: 5 to 90%RH (No Condensation)
- Bandwidth frequency: 10.2Gbps
- Input ports: 1xHDMI(female)
- Output ports: 2xHDMI outputs(female)
- Resolution outputs: up to 4Kx2K(3840x2160@60Hz YUV 4:2:0)
- Dimensions(LxWxH): 75x68x25.2mm
- Power consumption: 1W(MAX)
- Transmission Distance: 15m(Maximum)over standard HDMI cable/26AWG
- Net Weight: 128g Package Includes

- 1 x HDMI Splitter
- 1 x 5V/1A DC Adapter
- 1 x User Manual Product Brochure

- SX-SP142E Datasheet.pdf
