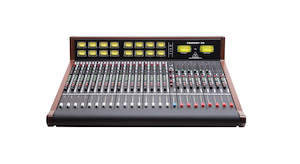

Trident audio developments Trident 78 Console 78-16 16 Channel Console w/ LED Meter Bridge

OVERVIEW

The Trident 78 all analog consoles are all Trident through and through.

The Trident 78 is a cost effective mixing console tailored for engineers, studio owners, educational facilities, houses of worship, and live sound applications.

The 78’s are Split/lnline consoles with individual channels in 4-way panels. Using an 8 subgroup configuration and incorporating 6 Aux sends, its routing options are vast and simple to use. Connections are fast and easy with DB-25’s throughout the board and XLR’s for speaker and main outputs.

With the 80B EQ at its core, including selectable channel inserts and discrete preamps driving the inputs, the Trident 78 consoles offer a wide array of summing and mixing options. The uncompromised sonic quality and compact footprint of the 78’s are able to meet any demand.

Features found throughout the 78 make for a straightforward and powerful package, but paramount to all else is The Sound. Among the many styles, preferences and methods of recording exists the expectation that a board must have the ability to be pushed hard and sound big. This is a hallmark of the series 80 consoles and the 78 carries that tradition forward.

Bottom line: The Trident 78 was created with all of this in mind so that you can use it to make great sounding tracks. Modularity Throughout

The 78’s by design are manufactured to be a more cost effective variant of the fully modular 88’s. Incorporating a similar chassis design and the same meter bridge, the 78’s have a rugged and proven core. Using a simi-modular design the 78’s are able to effectively reduce their overall costs without a significant sacrifice to serviceability.

All input channels are individual boards, faders included, each in a 4 channel panel.

Subgroups are individual boards, faders included, each in a 4 channel pack.

Master Channel is an individual channel separated from all others. Split/Inline Console:

Since the inception of this configuration by Trident Audio on the A-Range console in the late 1960’s it has been adopted throughout the industry and remains a standard configuration for our consoles today.

Dual Inputs to the channels with line and monitor inputs

4 Band EQ with sweeping mid bands and selectable low and high bands

27dB of headroom

Channel Inserts

Selectable EQ Path Microphone Preamp:

The 78’s incorporate the same high quality Class A Discrete preamp as the 88’s. These preamps have lots of headroom and high gain fully capable of driving ribbon microphones.

60dB gain discrete preamp

Balanced inputs

Balanced inserts with full bypass

Input Reverse Switch

Mic/Line Switch

Phantom Power Switch

Powerful EQ:

The 78’s incorporate the iconic Series 80B console EQ as the main channel EQ throughout the console. This EQ is known throughout the industry for its musicality and ease of use.

Selectable high bands at 8k and 12k

Sweepable High and Low Mids

Selectable low bands at 60Hz and 120Hz

50Hz High Pass Filter

Selectable Channel Insert

Master Section:

The master section of the 78’s are laid out for ease of use and have all the necessary features to manage your monitors, talkback, and stereo.
The 78’s master section is an independent channel from the rest of console to ensure that your console’s master output functions can be easily and quickly serviced with little or no downtime.

Main & Alt Monitor Control

Mute, Dim & Mono Controls

2 On board Headphone connections with Gain

8 Subgroups

8 Stereo FX

Two 2 Track

Subgroup Monitor

2 Mono and 1 Stereo AUX

Subgroup Stereo FX

1/8″ TRS Selectable Input

Onboard or External Talkback Mic

Selectable Output Transformer Option
