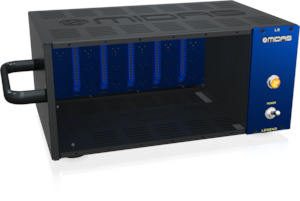

Midas Legend L6 6 Space 500 Series Chassis

The LEGEND L6 500 Series Portable Chassis lets you mix and match a wide range of audio processing modules to build the ideal signal chain for any application. With space for up to 6 single-width modules, advanced audio routing for simplified cabling, and a robust auto-ranging universal switch-mode power supply, you can take your favourite modules anywhere in the world with complete confidence. The included rackmount kit allows the L6 to be installed in standard 19" studio and touring racks. Designed to accommodate all 500 series-compatible modules and plug-in cards, the L6 is the perfect companion for your MICROPHONE PREAMPLIFIER 502, COMPRESSOR LIMITER 522, PARAMETRIC EQUALISER 512, and the many other modules currently under development – as well as those from 3rd party vendors.

The L6 chassis provides I/O connectivity and 48 V phantom power for up to 6 processing modules in a rugged steel cabinet that occupies only three 19" rackspaces (when fitted with the included rackmount kit).

Whether you are in the studio or on the road, signal chain cabling no longer need be an issue. L6's audio output link switches make it easy to rearrange and connect your modules without the need for complex cabling. Just install your modules in the order you wish and pass the signal along the chain free of any extraneous cables. This not only makes your rack much neater, it also helps you maintain the ultimate in signal integrity.

Features:

500 series portable chassis for 6 single-width modules

Advanced audio routing reduces cabling complexity

Audio output link switches provide cable-free daisy-chain connections between modules

Compressor bus link switches enable stereo and multi-channel dynamics sidechain linking

Rugged free-standing chassis with convenient carrying handle for portable applications

3U 19" rackmount kit allows installation in recording studios and live touring racks (included)

Earth lift switch eliminates any ground loop problems

High power auto-ranging universal switch-mode power supply for use worldwide

Over-specified ultra-low noise power supply output provides 3.2 A @ ±16 V and 300 mA @ 48 V

Main and auxiliary inputs and outputs per channel on Neutrik XLR connectors

Premium quality components throughout for crystal-clear audiophile signal path

10-Year Warranty Program

Designed and engineered in the U.K
