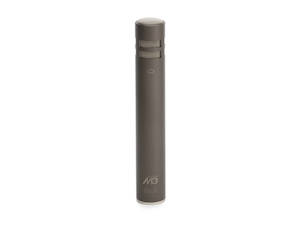

Microtech Gefell M 300 studio microphone

The M 300 is a compact studio-quality condenser microphone. The small microphone is particularly suitable for vocal and instrumental soloists due to its slight presence in the heights, which should be reproduced true to sound with a varied direction of input, e.g. speakers in dubbing studios, speakers, wind instruments. It is intended for use in radio, television and film studios for the transmission or recording of musical instruments, singing and speech as well as for sound reinforcement tasks in professional and semi-professional areas, even under acoustically unfavorable conditions, such as in churches.

A low-noise, highly controllable impedance converter in hybrid technology and the transformerless circuit concept guarantee a low equivalent volume and high operational reliability. Technical specifications

Directional characteristic - kidney

Acoustic way of working - Pressure gradient receiver

Transmission range - 20 Hz to 20,000 Hz

Sensitivity at 1 kHz - 12 mV / Pa

Nominal impedance - 100 ohms

Equivalent noise level - according to CCIR 468-4 - 26 dB

according to DIN EN 60268-4 - 16 dB-A

Signal-to-noise ratio - CCIR-rated (based on 1 Pa at 1 kHz) - 68 dB

A-weighted (based on 1 Pa at 1 kHz) - 78 dB

Limit sound pressure level at 0.5% distortion factor - 147 dB

Dynamic range - 131 dB

Power consumption - 3.3 mA

Connection fitting - XLR3M

weight - 126 g

length - 130 mm

diameter - 21 mm

colour - dark bronze
