Drawmer Kickbox 4X4 - Portable Active Splitter

The Kickbox 4x4 is an ‘all terrain’ 4 in/16 out mic/line signal splitter. Its extremely high audio quality, robust build and portability make it the ideal tool to provide multiple outputs for live sound, broadcast coverage, sports events, live recording, press conferences, corporate events and any situation where distribution of high quality audio is required. It incorporates 4 studio grade mic/line pre-amps, each providing up to 66dB of gain and 16 balanced output stages, each with the option of transformer isolation and comprehensive linking facilities.

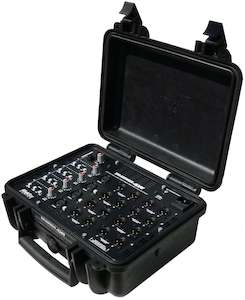

The 4x4 is supplied as standard in a road proof case with a removable lid for unhindered access to all controls and connections.

Inputs

4 STUDIO GRADE MIC/LINE PRE-AMPS.

INDEPENDENT INPUT BARGRAPH METERING

66dB OF VARIABLE GAIN

48V PHANTOM POWER

MIC/LINE SWITCHING

HEADPHONE MONITORING FACILITY Outputs

4 OUTPUTS PER CHANNEL.

ACTIVE SPLITTING ALLOWS FOR LONG CABLE RUNS.

OPTIONAL TRANSFORMER ISOLATION.

TRANSFORMER LOADED LED STATUS.

LINKING. Can be configured as

1x 1 IN/16 OUT.

2x 1 IN/ 8 OUT.

1x 1 IN/12 OUT plus 1 IN/4 OUT.

4x 1 IN/4 OUT.

Other Features

PORTABILITY.

INTERSTACKABLE.

REMOVABLE LID TO PROVIDE EASY ACCESS AND CABLE ROUTING.

COMPACT SELF CONTAINED ROAD PROOF CASE ELIMINATES THE NEED FOR BULKY FLIGHT CASES.

WHEN LOCKED IT’S DUST / WATER / CORROSION PROOF.
