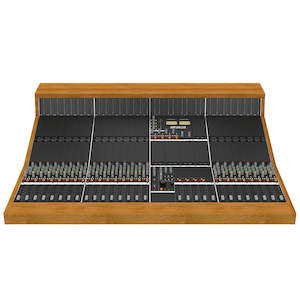

Looptrotter Audio Modular Console - 24 Channel

LOOPTROTTER MODULAR CONSOLE is a perfect solution for all studios and engineers who already use 500s modules in their environment. It is fully customizable and compatible with almost every 500s module available on the market.

The new Looptrotter Modular Console is an all analog recording and mixing console designed for engineers, recording studios and educational facilities. The Modular System allows for Split/Inline configuration. It’s incredibly versatile and easy to use thanks to 8 subgroups and 4 Aux Sends. The plug’n’play setup is fast and effective thanks to DB-25 and XLR connectors.


8 CHANNEL MODULE
Two selectable work modes (sources) Record (MIC) and Mix (DAW)
Direct to Tape/DAW output with adjustable level
Mic/Line input (DB25)
DAW input (DB25)
Insert send (DB25)
Insert return (DB25)
Discrete OP-AMPS circuit
100% analog signal path
Two 500s slots with true bypass
4 Auxes per channel, pre/post fader assignable
Adjustable panning
Mute track switch
Solo track switch
Every channel is assignable to 5 different summing buses, 1-4 stereo summing groups, Master or both
Fully operational as an empty frame (no 500s modules installed)
LED meter bridge included
Alps faders included

MASTER MODULE
4 Auxes, Pre/Post fader assignable

Solo Aux switch

LED meters for Solo level
5 stereo assignable summing groups, 1-4 stereo summing groups and master channel
Solo switch for each group
Mute switch for each group
Two 500s slots on Master Buss (L R)
Master Buss 500s module bypass
Master Buss insert switch
Daw input adjustable level
External input adjustable level
Two 500s slots on each summing group (1-4), 8 in total
True bypass switch on each 500s module
Insert switch on each stereo group
Alps faders
Four summing group LED meters (Summing group meter bridge)
Two analog VU Meters for Master Output
Built in talkback microphone with adjustable gain
Listen mic input with adjustable level
Intuitive talkback with adjustable routing: SLS (Studio Loudspeaker), AUX
Three talkback modes, stable, moment and auto External Talkback microphone input with 48V phantom power and adjustable gain
Studio listen microphone input with 48V phantom power and adjustable gain
Talkback footswitch
Monitor section with A/B/C speaker select with adjustable trim for each speaker set
Selectable monitor source: External, DAW, L R
Adjustable headphones listening level
Adjustable solo level
Adjustable dim level

Connections:

Monitor A/B/C balanced output (XLR)
External stereo input (TRS)
Talkback footswitch (TRS)
Studio Loudspeaker output (XLR)
Studio listen input (XLR)
External talkback input (XLR)
Stereo input (DB25)
Group output (DB25)
External output/AUX output (DB25)
Main output/insert/DAW input (DB25)
Insert input (DB25)
Insert return (DB25)
Mic/Line input (DB25)
DAW input (DB25)
Tape output (DB25)
Insert send (DB25)
Insert return (DB25)
Monitor mute switch
Monitor dim switch
Solo clear switch
